SDK Installation

The Platform and Apps SDKs are targeted for Linux-based platforms. The SDKs can be installed natively on Linux operating systems. Containers and orchestration are also supported through Docker and Kubernetes. Virtual machines, including KVM, ESXi, and Hyper-V, are also supported. This section covers:

  • Installation of the SDKs across multiple Linux distributions

  • Building a Docker image with the SDKs and third-party packages for a seamless execution of QAic inference tools/workflow

  • Setting up KVM, ESXi, and Hyper-V, and installation of SDKs

Compilation and Execution modes

Apps and Platform SDKs enable just-in-time (JIT) or ahead-of-time (AOT) compilation and execution on x86-64 and AArch64 platforms.

In JIT mode, compilation and execution are tightly coupled and require Apps and Platform SDKs to be installed on the same system/VM.

In AOT mode, compilation and execution are decoupled. Networks can be compiled ahead-of-time and the compiled networks can be deployed on x86-64 or AArch64 with Platform SDK.

Both JIT and AOT are supported when Apps and Platform SDK are installed on the same server/VM.

Hardware Requirements

  • CPU - Server grade x86 or ARM multi-core CPU

  • RAM - minimum 512 GB (recommend 768GB or higher)

    • Required for the compilation of large models and corresponding configurations like batch size, context length etc.

  • Storage - minimum 1TB (recommend 4TB)

    • Large storage is recommended to store multiple models (and associated artifacts), serialized engines etc.

Supported Operating Systems, Hypervisors, and Platforms

The Cloud AI Platform SDK is compatible with the following operating systems (OS) and platforms.

Operating Systems

Operating systems

Kernel

Ubuntu 20.04

Default Kernel (GA or HWE)

Ubuntu 22.04

Default Kernel (GA or HWE)

Ubuntu 24.04

Default Kernel (GA or HWE)

Red Hat Enterprise Linux 8.10

Default Kernel

Red Hat Enterprise Linux 9.5

Default Kernel

Amazon Linux 2

Amazon 5.10 Kernel

Amazon Linux 2023

Default Kernel

Note1: Arm is a trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

Note2: Ultra cards consume 4 DRM/Accel device resources per card. Kernels prior to 6.2 are limited to 64 DRM device resources for the entire system. Using Ubuntu 22.04 with the HWE kernel is recommended as the resource limit is 256 Accel devices. Deployments with large numbers of Ultra cards that do not follow this recommendation may not be able to use all the combined hardware resources of the Ultra cards.

Note3: Amazon Linux 2 support available only for x86-64 platforms.

Hypervisors

Cloud AI only supports PCIe passthrough to a virtual machine. This means that the virtual machine completely owns the Cloud AI device. A single Cloud AI device cannot be shared between virtual machines or between a virtual machine and the native host.

Hypervisor

x86-64

AArch64

KVM

Hyper-V

ESXi

Xen

Note Cloud AI SDKs are not required to be installed on the hypervisor. All the Cloud AI software/SDKs are installed on the guest VMs.

SDK Download Instructions

Version 1.12 onwards, Platform and Apps SDK can only be downloaded from Qualcomm Package Manager.

  1. login to Qualcomm Package Manager. First time users need to register for a Qualcomm ID.

  2. Click on Tools

  3. In the Filter pane on the left, check Linux and uncheck Windows.
    In the search box, type Cloud AI.
    Click on Qualcomm® Cloud AI Products to reveal the SDKs available.
  4. For Platform SDK, click Qualcomm® Cloud AI Platform SDK.
    For Apps SDK, click Qualcomm® Cloud AI Apps SDK.

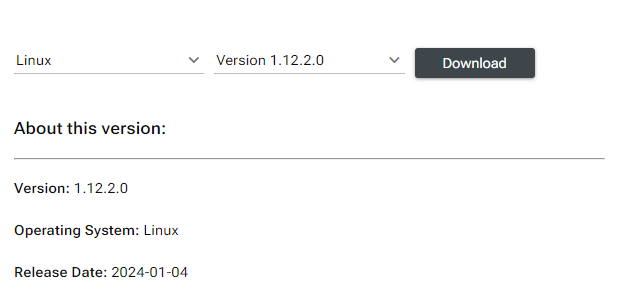

  5. Two drop down lists are present, one for the OS and one for the version of the SDK. Select Linux (Debian) and SDK Version from the drop down lists.

../../../../_images/qpm_download_sdk.png
  1. Click the Download button to download the SDK.

Platform SDK

  • The downloaded Platform SDK file is named aic_platform.Core.<majorversion.minorversion.patchversion.buildversion>.Linux-AnyCPU.zip.
    For example: aic_platform.Core.1.19.10.0.Linux-AnyCPU.zip.
  • On the host machine, log in as root or use sudo to have the right permissions to complete installation

  • Copy the Platform SDK downloaded from the Qualcomm Portal to the host machine

  • Log in to the host machine (ssh or local terminal)

  • Unzip the downloaded zip file to a working directory

  • cd to the working directory

Info

The Platform SDK contains collaterals for x86-rpm, x86-deb, aarch64-rpm and aarch64-deb. Confirm the architecture and linux package format that works for your setup.

The Platform SDK (qaic-platform-sdk-<major.minor.patch.build>) is composed of the following tree structure.

├── aarch64
│   ├── deb
│   │   ├── deb
│   │   ├── deb-docker
│   │   ├── deb-perf
│   │   └── Workload
│   ├── rpm
│   │   ├── rpm
│   │   ├── rpm-docker
│   │   ├── rpm-perf
│   │   └── Workload
│   └── test_suite
│       ├── pcietool
│       └── powerstress
├── common
│   ├── qaic-test-data
│   └── sectools
└── x86_64
    ├── deb
    │   ├── deb
    │   ├── deb-docker
    │   └── Workload
    ├── rpm
    │   ├── rpm
    │   ├── rpm-docker
    │   └── Workload
    └── test_suite
        ├── pcietool
        └── powerstress

Uninstall existing Platform SDK

cd <architecture>/<deb/rpm>
sudo ./uninstall.sh
sync

Run the install.sh script as root or with sudo to install with superuser permissions. Installation may take up to 30 mins depending on the number of Cloud AI cards in the server/VM. Cloud AI cards undergo resets several times during the installation.

Upgrading to SDK 1.19 is a 2-step process:

  1. In the first step we need to prepare each SoC to accept the 1.19 SBL bootloader firmware

  2. In the second step we upgrade to the 1.19 SBL bootloader firmware

For Hybrid boot cards (PCIe CEM form factor cards), run:

cd <architecture>/<deb/rpm>

sudo ./install.sh --no_auto_upgrade_sbl    # For VM on ESXi hypervisor, also add the --datapath_polling option
sudo ./install.sh --ecc enable

# Allow server to initialize all devices
sleep 10

# List QIDs in the system
sudo /opt/qti-aic/tools/qaic-util -q | grep -e QID

# Update SoC, repeat for all QIDs in the system.
sudo /opt/qti-aic/tools/qaic-firmware-updater -d <QID> -f

# Reset cards.
sudo /opt/qti-aic/tools/qaic-util -s

To check qmonitor service is active or inactive - use the below command

```
sudo systemctl is-active qmonitor-proxy
```

In case you need to stop and start Qmonitor server, please use below commands.

sudo /opt/qti-aic/scripts/qaic-monitor-service.sh stop

sudo /opt/qti-aic/scripts/qaic-monitor-service.sh start

For Flashless boot cards (less common), run:

sudo ./install.sh --ecc enable
# For VM on ESXi hypervisor, run
sudo ./install.sh --datapath_polling --ecc enable

To enable mdp, disable acs, increase the mmap limit & ulimit value, use --setup_mdp all option.

sudo ./install.sh --setup_mdp all

On successful installation of the platform SDK, the contents shown below are stored in /opt/qti-aic:

config  dev  examples  exec  firmware  lib  services  test-data  tools  versions

Check Platform SDK version using

sudo /opt/qti-aic/tools/qaic-version-util --platform

Add user to the qaic group to allow command-line tools to run without sudo:

sudo usermod -a -G qaic $USER

Verify card operation

Refer to Verify Card Operation

Apps SDK

  • The downloaded Apps SDK file is named aic_apps.Core.<majorversion.minorversion.patchversion.buildversion>.Linux-AnyCPU.zip. For example: aic_apps.Core.1.19.10.0.Linux-AnyCPU.zip.

  • Copy the SDK over to the linux host machine.

  • unzip the downloaded file.

Info

The Apps SDK contains collaterals for AArch64 and x86-64. Confirm the architecture and linux package format that works for your setup.

  • The Apps SDK (qaic-apps-<major.minor.patch.build version>) is composed of the following tree structure.

├── aarch64
│   ├── deb
│   │   ├── dev
│   │   │   ├── hexagon_tools
│   │   │   └── lib
│   │   ├── exec
│   │   |   ├── qaic-exec
│   │   |   └── qaic-opstats
│   │   ├── qaic-encrypt
│   │   |   ├── qaic_verify_attestation
│   │   |   └── qwes_certs
│   │   ├── scripts
│   │   |   └── qaic-model-configurator
│   │   ├── tools
│   │   |   ├── custom-ops
│   │   |   └── smart-nms
│   │   └── versions
├── common
│   ├── dev
│   |   ├── inc
│   |   ├── lib
│   |   └── python
│   ├── examples
│   |   ├── apps
│   |   └── scripts
│   ├── integrations
│   |   ├── kserve
│   |   ├── qaic_onnxrt
│   |   ├── tgi
│   |   ├── triton
│   |   └── vllm
│   ├── scripts
│   |   └── qaic-prepare-model
│   ├── tools
│   |   ├── aic-manager
│   |   ├── docker-build
│   |   ├── graph-analysis-engine
│   |   ├── k8s-device-plugin
│   |   ├── opstats-profiling
│   |   ├── package-generator
│   |   ├── qaic-inference-optimizer
│   |   ├── qaic-pytools
│   |   ├── rcnn-exporter
│   |   └── qaic-version-util
├── x86_64
│   ├── deb
│   |   ├── dev
│   |   ├── exec
│   |   ├── qaic-encrypt
│   |   ├── scripts
│   |   ├── tools
│   |   └── versions
│   ├── rpm
│   |   ├── dev
│   |   ├── exec
│   |   ├── qaic-encrypt
│   |   ├── scripts
│   |   ├── tools
│   |   └── versions

Install Apps SDK

  • Uninstall existing Apps SDK
    sudo ./uninstall.sh
  • Run the install.sh script as root or with sudo to install with root permissions.
    sudo ./install.sh --enable-qaic-pytools
  • On successful installation of the Apps SDK, the contents are stored to the /opt/qti-aic path under the dev and exec directories:
    dev exec integrations scripts
  • Check the Apps SDK version with the following command
    cat /opt/qti-aic/versions/apps.xml
  • Apply chmod commands

    sudo chmod a+x /opt/qti-aic/dev/hexagon_tools/bin/*
    sudo chmod a+x /opt/qti-aic/exec/*
