vLLM¶

This guide demonstrates how to add AI 100 backend support to the vLLM open-source library, which simplifies the creation of OpenAI-compatible web endpoints and provides features like continuous batching and other optimizations for LLM inference and serving.

Installation¶

Pre-Built Docker image with vLLM support¶

Pre-built Docker images for Cloud AI with vLLM support are available in the cloud-ai-containers GitHub repo.

Docker build steps¶

Follow these steps to build your own Docker image for Cloud AI with vLLM support.

Refer to this page for prerequisites prior to building the docker image that includes the vLLM installation

Build the docker image which includes the vLLM installation using the build_image.py script.

cd </path/to/apps-sdk>/common/tools/docker-build/

python3 build_image.py --user_specification_file ./sample_user_specs/user_image_spec_vllm.json --apps_sdk path_to_apps_sdk_zip_file --platform_sdk path_to_platform_sdk_zip_file --tag 1.19.8.0

This should create a docker image with vLLM installed.

ubuntu@host:~# docker image ls
REPOSITORY                                                                      TAG                           IMAGE ID       CREATED         SIZE
qaic-x86_64-ubuntu20-py310-py38-release-qaic_platform-qaic_apps-pybase-pytools-vllm   1.19.8.0                      3e4811ba18ae   3 hours ago     7.05GB

Docker run steps¶

Once the Docker image is downloaded or built, refer to instructions here to launch the container and map Cloud AI devices to the container.

After the container is launched, activate the virtual environment and run a sample inference using the example script provided.

source /opt/vllm-env/bin/activate

cd /opt/qti-aic/integrations/vllm/
python examples/offline_inference_qaic.py

Installing from source¶

# Add user to qaic group to access Cloud AI devices without root
sudo usermod -aG qaic $USER
newgrp qaic

# Create a python virtual enviornment
python3.10 -m venv qaic-vllm-venv

source qaic-vllm-venv/bin/activate

# Install the current release version of `Qualcomm Efficient-Transformers <https://github.com/quic/efficient-transformers>`_ (vLLM with qaic support requires efficient-transformers for model exporting and compilation)
pip install -U pip

pip install git+https://github.com/quic/efficient-transformers@release/v1.19.3_fp8_update

# Clone the vLLM repo, and apply the patch for qaic backend support
git clone https://github.com/vllm-project/vllm.git

cd vllm

git checkout v0.7.0

git apply /opt/qti-aic/integrations/vllm/qaic_vllm.patch

# Set environment variables and install
export VLLM_TARGET_DEVICE="qaic"

pip install -e .

# Run a sample inference
python examples/offline_inference/qaic.py

# Add user to qaic group to access Cloud AI devices without root
sudo usermod -aG qaic $USER
newgrp qaic

# Create a python virtual enviornment
python3.10 -m venv qaic-vllm-venv

source qaic-vllm-venv/bin/activate

# Install the current release version of `Qualcomm Efficient-Transformers <https://github.com/quic/efficient-transformers>`_ (vLLM with qaic support requires efficient-transformers for model exporting and compilation)
pip install -U pip

pip install git+https://github.com/quic/efficient-transformers@release/v1.19.3_fp8_update

# Install Triton for AArch64
mkdir triton-3.0.0;
cd triton-3.0.0;
git clone https://github.com/triton-lang/triton.git -b release/3.0.x --depth=1;

# LLVM git cloning:

cp /triton-3.0.0/triton/cmake/llvm-hash.txt .

mkdir llvm-main && cd llvm-main
export LLVM_HASH="$(cat /path_to/triton-3.0.0/triton/cmake/llvm-hash.txt)"

git clone --recursive https://github.com/llvm/llvm-project.git -b main
cd llvm-project && git checkout ${LLVM_HASH}

# LLVM building:
pip install ninja cmake
mkdir llvm-project/build; cd llvm-project/build;
cmake -G Ninja -DCMAKE_BUILD_TYPE=Release -DLLVM_ENABLE_ASSERTIONS=ON ../llvm -DLLVM_ENABLE_PROJECTS="mlir;llvm" -DLLVM_TARGETS_TO_BUILD="host;NVPTX;AMDGPU"; ninja;


# Triton building:
cd /path_to/triton-3.0.0/triton/python;
export LLVM_BUILD_DIR=/path_to/llvm-main/llvm-project/build;
export LLVM_INCLUDE_DIRS=$LLVM_BUILD_DIR/include; \
export LLVM_LIBRARY_DIR=$LLVM_BUILD_DIR/lib; \
export LLVM_SYSPATH=$LLVM_BUILD_DIR; \
pip wheel .

pip install triton-3.0.0-cp310-cp310-linux_aarch64.whl .This is for Python 3.10, we can download the same for Python 3.8 as well.

# Clone the vLLM repo, and apply the patch for qaic backend support
git clone https://github.com/vllm-project/vllm.git

cd vllm

git checkout v0.7.0

git apply /opt/qti-aic/integrations/vllm/qaic_vllm.patch

# Set environment variables and install
export VLLM_TARGET_DEVICE="qaic"

pip install -e .

# Run a sample inference
python examples/offline_inference/qaic.py

Running Example Scripts¶

Running a sample inference¶

python examples/offline_inference/qaic.py

For FP8 models¶

It’s recommended to use dtype mxfp6 and kvcache mxint8 for FP8 models.

Prefix Caching Support with vLLM¶

Limitations¶

• QAIC vLLM does not support PagedAttention as of now. So, QAIC Prefix Caching can not share the same block between two sequences running simultaneously in the same decode batch.

• QAIC Prefix Caching can not currently be enabled along with any of the following features: SpD, multimodality, or LoRAX.

Parameters relevant for Prefix Caching¶

Example Code for Prefix Caching¶

python examples/offline_inference/qaic_prefix_caching.py

Speculative Decoding (SpD) Support with vLLM¶

• Currently, SpD via draft model is supported.

Limitations¶

• SpD via Medusa, EAGLE or PLD is not supported yet.

Parameters relevant for SpD¶

Default QAIC SpD run settings¶

Always compiles for 1 Ultra card by default assuming both draft and target models are running on the same card: with 8 core each. To use different hardware configurations, use override-qaic-config or speculative-overrride-config.

Example Code for SpD¶

python examples/offline_inference/qaic_spd_pld.py

Multimodality Support with vLLM¶

Limitations¶

• Current support is only for single batch, single image.

• Multimodality does not support Prefix Caching, SPD, Continuous batching, prefill chucking or LoRA.

• Open-AI multi-modal APIs are only supported for single QPC approach.

• Due to limitations in the model meta-llama/Llama-3.2-11B-Vision itself, it only accepts prompts for text completion. For more generic questions, please use meta-llama/Llama-3.2-11B-Vision-Instruct instead.

Models supported with QAIC¶

vLLM flags and environment variables¶

Dual QPC Approach¶

For vision-language models, vLLM supports two approaches: kv_offload=True (dual QPCs approach) and kv_offload=False (single QPC approach)

The dual QPCs approach is the recommended method. It splits the model to perform image encoding and output generation in two different QPCs.

In vLLM, to support dual QPC, one LLM is initialized for the embedding task and runs encoding to produce image representations. A second LLM is initialized for the generation task and runs generation to produce completions for the input prompts. The first LLM’s outputs are passed to the second LLM via the host in this case. To enable the dual QPC approach, each of the two LLMs must be provided with override_qaic_config={"kv_offload": True} during initialization.

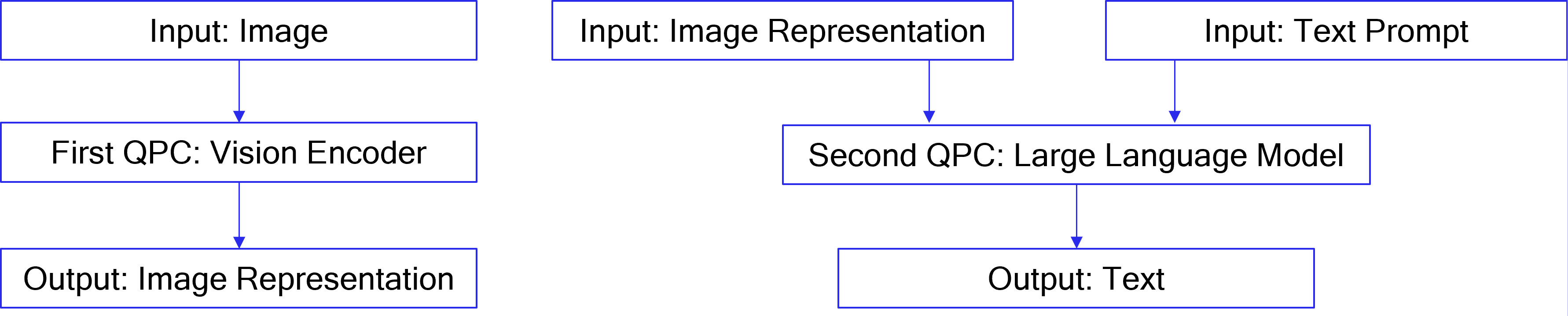

The diagram below explains the dual QPCs approach in comparison to the single QPC approach.

Example Code and Run Command¶

python examples/offline_inference/qaic_vision_language_kv_offload.py --image-url https://huggingface.co/datasets/huggingface/documentation-images/resolve/0052a70beed5bf71b92610a43a52df6d286cd5f3/diffusers/rabbit.jpg --question "What's in the image?" -m internvl_chat --num-prompt 1

Single QPC Approach¶

In single QPC approach, a single QPC will perform both image encoding and output generation, so only one LLM needs to be initialized. The Whisper model is supported only through the single QPC approach.

Example Code and Run Command¶

python examples/offline_inference/qaic_vision_language.py --image-url https://huggingface.co/datasets/huggingface/documentation-images/resolve/0052a70beed5bf71b92610a43a52df6d286cd5f3/diffusers/rabbit.jpg --question "What's in the image?" -m internvl_chat --num-prompt 1

python examples/offline_inference/qaic_whisper.py --filepath PATH_TO_AUDIO_FILE.

Limitations¶

• Current support is only for single batch, single image.

• Multimodality does not support Prefix Caching, SPD, Continuous batching, prefill chucking or LoRA.

• Open-AI multi-modal APIs are only supported for single QPC approach.

• Due to limitations in the model meta-llama/Llama-3.2-11B-Vision itself, it only accepts prompts for text completion. For more generic questions, please use meta-llama/Llama-3.2-11B-Vision-Instruct instead.

LoRAX Support with vLLM¶

Limitations¶

• The compiled adapters should have their weights applied to the same set of target projection layers and modules. The supported modules are limited to {“q_proj”, “k_proj”, “v_proj”, “o_proj”}. Modules such as {“up_proj”, “down_proj”, “gate_proj”} are not yet supported.

Parameters relevant for LoRAX¶

Create a LoRA request as follows and pass it to the generate API call.

lora_requests = [
    LoRARequest(
        lora_name=repo_id[i].split("/")[1], lora_int_id=(i + 1), lora_path=snapshot_download(repo_id=repo_id[i])
    )
    for i in range(len(prompts))
]
outputs = llm.generate(prompts, sampling_params, lora_request=lora_requests)

Note: The maximum adapters to be compiled is by default 128, if want to increase, the size should be set through export VLLM_QAIC_LORA_MAX_ID_SUPPORTED=XXX

Example Code for LoRAX¶

python vllm/tests/test_qaic/lora/example_offline_inference_qaic_lora.py

Server Endpoints¶

vLLM provides capabilities to start a FastAPI server to run LLM inference. Here is an example to use qaic backend (i.e. use the AI 100 cards for inference).

# Need to increase max open files to serve multiple requests
ulimit -n 1048576

# Start the server
python3 -m vllm.entrypoints.api_server --host 127.0.0.1 --port 8000 --model TinyLlama/TinyLlama-1.1B-Chat-v1.0 --max-model-len 256 --max-num-seq 16 --max-seq_len-to-capture 128 --device qaic --block-size 32 --quantization mxfp6 --kv-cache-dtype mxint8

# Client request
python3 examples/api_client.py --host 127.0.0.1 --port 8000 --prompt "My name is" --stream

Similarly, an OpenAI compatible server can be invoked as follows

# Need to increase max open files to serve multiple requests
ulimit -n 1048576

# Start the server
python3 -m vllm.entrypoints.openai.api_server --host 127.0.0.1 --port 8000 --model TinyLlama/TinyLlama-1.1B-Chat-v1.0 --max-model-len 256 --max-num-seq 16 --max-seq_len-to-capture 128 --device qaic --block-size 32 --quantization mxfp6 --kv-cache-dtype mxint8

# Client request
python3 examples/openai_chat_completion_client.py

Benchmarking¶

vLLM provides benchmarking scripts to measure serving, latency and throughput performance. Here’s an example for serving performance. First, start an OpenAI compatible endpoint using the steps in the previous section.

Download the dataset:

wget https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json

Start benchmarking the OpenAI endpoint

# Start benchmarking
python3 benchmarks/benchmark_serving.py --backend openai --base-url http://127.0.0.1:8000 --dataset-name=sharegpt --dataset-path=./ShareGPT_V3_unfiltered_cleaned_split.json --sharegpt-max-input-len 128 --sharegpt-max-model-len 256 --model TinyLlama/TinyLlama-1.1B-Chat-v1.0 --seed 12345

vLLM input arguments for QAIC¶

Override Arguments that can be modified¶

override-qaic-config = <Compiler cfg for target model>

Using this interface user can override default attributes such as, - num_cores, dfs, mos, device_group, qpc_path, mxfp6_matmul, mxint8_kv_cache, device_group, and other compiler options.

CLI inferencing¶

Single space between attributes, no space within attribute and value pair during running on command line arguments.

Example

--override-qaic-config = "num_cores=4 mxfp6_matmul=True mos=1 device_group=0,1,2,3"

Note: Only provide attributes which need to be overridden.

Python object inferencing¶

Override arguments can also be passed as input during LLM object creation.

Example

override_qaic_config = {'num_cores':8, 'mxfp6_matmul':True,  'mos':1}

Note: Only provide attributes which need to be overridden.

vLLM flags and environment variables¶

Avoiding CPU oversubscription via VLLM_QAIC_MAX_CPU_THREADS¶

CPU oversubscription refers to a situation where the total number of CPUs allocated to a system exceeds the total number of CPUs available on the hardware. This leads to severe contention for CPU resources. In such cases, there is frequent switching between processes, which increases processes switching overhead and decreases overall system efficiency. In containers where multiple instances of vLLM can cause oversubscription, limiting the concurrent CPU threads is a good way to avoid oversubscription.

Example

export VLLM_QAIC_MAX_CPU_THREADS=8

vLLM Deployment using Kserve¶

Readme and config file related to vLLM can be found at /path/to/apps-sdk/common/integrations/kserve/vLLM

Initial Notes:¶

1. quick_install.sh and yaml files for AWS deployment are available in aws_files directory and for minikube deployment in minikube_files directory.

2. vLLM Docker container need to be built from /path/to/apps-sdk/common/tools/docker-build.

3. Instructions to build vLLM Container are available at /path/to/apps-sdk/common/tools/docker-build. Sample cmd:

python3 build_image.py --tag 1.11.0.46-vllm --log_level 2 --user_specification_file /opt/qti-aic/tools/docker-build-gen2/sample_user_specs/user_image_spec_vllm.json --apps-sdk /apps/sdk/path --platform-sdk /platform/sdk/path

4. Sample user_specification_file should look like.

{
    "base_image": "ubuntu20",
    "applications": ["vllm"],
    "python_version": "py310",
    "sdk": {
        "qaic_apps": "required",
        "qaic_platform": "required"
    }
}

Resources:¶

1. Instructions to setup peristent volumes for the Kubernetes pods: https://kubernetes.io/docs/tasks/configure-pod-container/configure-persistent-volume-storage/

2. Instructions on using AWS ECR (Elastic Container Service) https://docs.aws.amazon.com/AmazonECR/latest/userguide/getting-started-cli.html

Assumptions:¶

1. An available AI 100 machine with EKS service or Minikube service deployed

2. You are aware on how to deploy and pull image from Elastic Container Service and familiar with APPS-SDK.

3. You have basic knowledge on mounting volume on kubernetes pods. Check out point “1” in resources.

4. vLLM Docker container is available as mentioned in Initial Notes.

Kubernetes Device Plugin Deployment:¶

1. Plugin available at /path/to/apps-sdk/tools/k8s-device-plugin/

2. Run: bash build_image.sh

3. The above will create an ubuntu18 (x86) based container.

4. Run docker images and check that you see: qaic-k8s-device-plugin:v1.0.0

5. Install the device plugin: kubectl create -f qaic-device-plugin.yml

6. Run kubectl describe node | grep qaic - You should see positive integer values for the first 2 lines. Now you can track them in the full output.

Modifications to current files:¶

1. Build vLLM Docker container using /path/to/apps-sdk/tool/docker-build.

2. Modify kserve_runtimes.yaml file: for metadata: name: kserve-vllmserver where spec.containers.args has value vllmserver, replace spec.container.image to the name of vLLM image built in step 1.

3. Deploy the vLLM image on AWS Elastic Container or any public Docker repository, so that it can be pulled by Kserve for inferencing. Or make sure its available in local Docker registry.

4. Modify inference.yaml file to point it to correct vLLM image built, make sure the image is available locally or you are pulling it from Docker public library.

   • If using Minikube then you need to setup imagePullSecret and update it accordingly in inference.yaml

5. Modify the resources in inference.yaml to adjust to your system specifications.

6. Modify the conatiner args in inference.yaml accordingly to pass arguments to vLLM server.

If you have time out problem¶

1. You need to create a vLLM Docker image with models already available inside the conatiner and then launch the model.

2. Make sure the respective models are available inside the vLLM container.

   • Docker can be commited to store the model docker commit <container_id> kserve-vllm-model

   • kserve-vllm-model image can be used as a base image for the pod.

Setup Instructions:¶

1. Make sure you have all the requirements and modifications mentioned above.

2. bash quick_install.sh

3. kubectl apply -f inference.yaml

4. For Minikube deployments only: kubectl apply -f minikube-service.yaml

Inference Instructions:(Example cmds)¶

AWS¶

• SERVICE_NAME=kserve-vllm-model

• SERVICE_HOSTNAME=$(kubectl get inferenceservice $SERVICE_NAME -o

  jsonpath=’{.status.url}’ | cut -d “/” -f 3)

• MODEL_NAME=<model_name>

• INGRESS_GATEWAY_SERVICE=$(kubectl get svc -namespace istio-system

  -selector=”app=istio-ingressgateway” -output jsonpath=’{.items[0].metadata.name}’)

• kubectl port-forward -namespace istio-system

  svc/${INGRESS_GATEWAY_SERVICE} 8000:80

Start different AWS terminal on same host after this¶

• export INGRESS_HOST=localhost

• export INGRESS_PORT=80

• For single inference

  curl -H "Accept: application/json" -H "Content-type: application/json" -X POST -d '{"prompt": "My name is", "max_tokens":10, "temperature":0.7}' -H Host:${SERVICE_HOSTNAME} "http://${INGRESS_HOST}:${INGRESS_PORT}/v2/models/{$MODEL_NAME}/generate"

• To test autoscaling

  hey -n 10000 -c 100 -q 1 -m POST -host ${SERVICE_HOSTNAME} -d '{"prompt": "My name is", "max_tokens":10, "temperature":0.7}' "http://${INGRESS_HOST}:${INGRESS_PORT}/v2/models/{$MODEL_NAME}/generate"

Minikube¶

• Start Minikube with minikube start --driver=none

• Install Kserve

  cd minikube_files
  bash quick_install.sh


• Apply the qaic-device-plugin.yml (from section Kubernetes Device Plugin Deployment)

• Apply the pull secret if required (To pull the image from public Docker registry). kubectl apply -f pull-secret.yaml

• Apply inference.yaml kubectl apply -f inference.yaml

• Verify if the pods are up and running kubectl get pods

  NAME                                                              READY    STATUS    RESTARTS    AGE
  kserve-vllm-model-predictor-default-00001-deployment-85bdb6b48rbq   2/2     Running   0          45m


• Apply inference-service yaml file kubectl apply -f minikube-service.yaml

• Start a seperate terminal to create a minikube tunnel

  • Create a tunnel between minikube and host machine minikube tunnel

• kubectl get svc gives you the service and external IP to connect for inferencing.

  NAME                                              TYPE           CLUSTER-IP      EXTERNAL-IP              PORT(S)               AGE
  kserve-vllm-model-external                       LoadBalancer   10.104.86.212   10.104.86.212            80:32335/TCP           47m``


• Make sure proper ports are setup and exposed for inferencing.(Modifications to yaml file might be required)

• Use curl command to do inferencing from host machine. Sample cmd:

  curl -X POST http://<EXTERNAL-IP>:80/v1/completions -H "Content-Type: application/json" -H "Authorization: Bearer token-abc123" -d '{ "model": "<MODEL_NAME>",   "prompt": "My name is",   "max_tokens": 50 }'


• Use hey command to verify autoscaling. Sample cmd:

  hey -n 10000 -c 100 -q 1 -m POST -T "application/json" http://<EXTERNAL-IP>:80/v1/completions -d  '{ "model": <MODEL_NAME>,   "prompt": "My name is",   "max_tokens": 50 }'
