Inheritance diagram for Pl011:

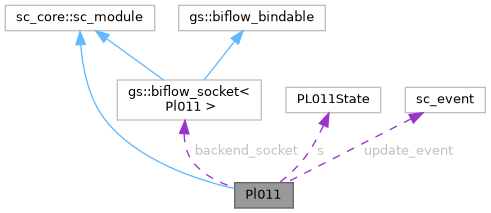

Collaboration diagram for Pl011:
Public Member Functions | |
| Pl011 (sc_core::sc_module_name name) | |
| void | b_transport (tlm::tlm_generic_payload &trans, sc_core::sc_time &delay) |
| void | pl011_update () |
| void | pl011_update_sysc () |
| uint32_t | pl011_read (uint64_t offset) |
| void | pl011_set_read_trigger () |
| void | pl011_write (uint64_t offset, uint32_t value) |
| void | pl011_put_fifo (uint32_t value) |
| void | pl011_receive (tlm::tlm_generic_payload &txn, sc_core::sc_time &t) |
Public Attributes | |
| PL011State * | s |
| tlm_utils::simple_target_socket< Pl011, DEFAULT_TLM_BUSWIDTH > | socket |
| gs::biflow_socket< Pl011 > | backend_socket |
| InitiatorSignalSocket< bool > | irq |
| sc_core::sc_event | update_event |
The documentation for this class was generated from the following file:
- systemc-components/uart/uart-pl011/include/uart-pl011.h
