QEMU device abstraction as a SystemC module. More...

#include <device.h>

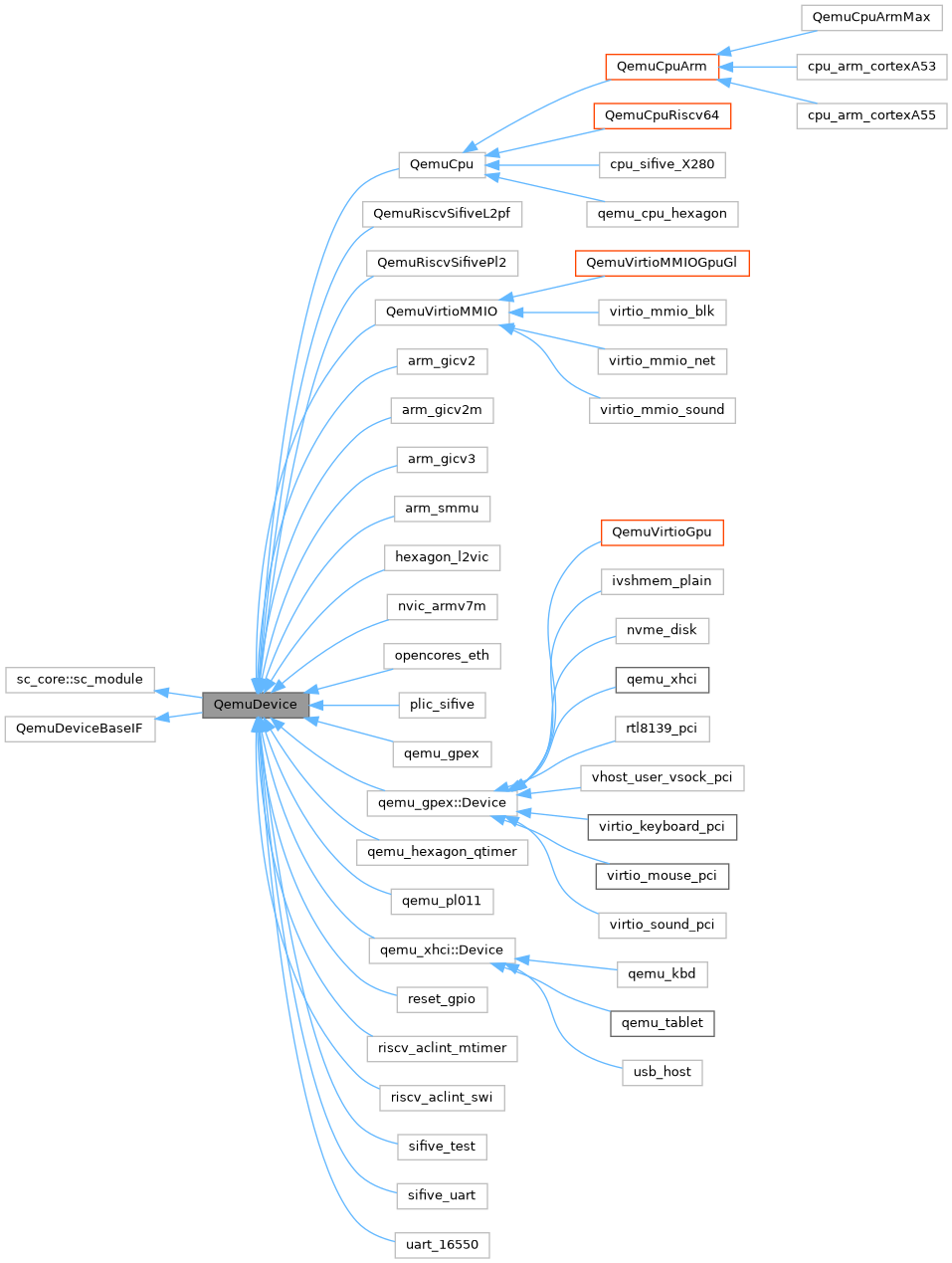

Inheritance diagram for QemuDevice:

[legend]

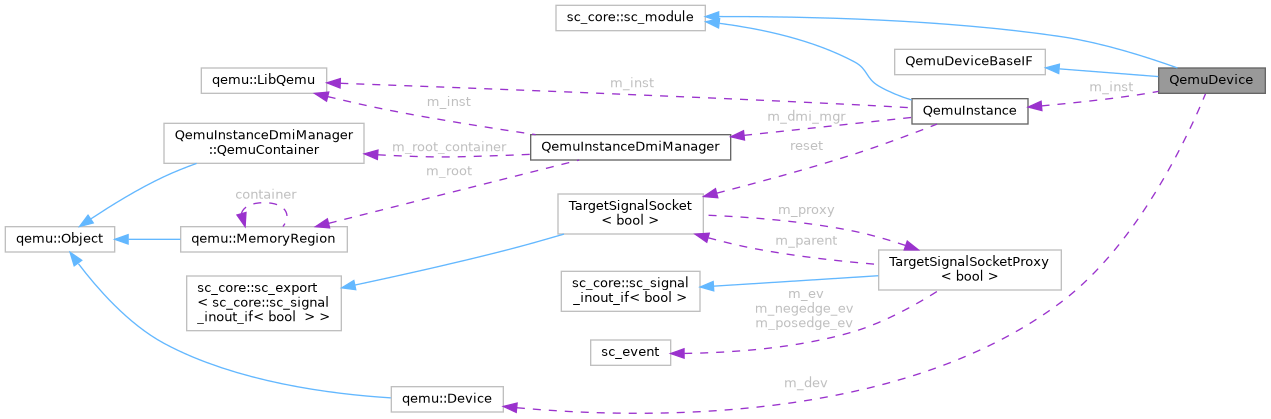

Collaboration diagram for QemuDevice:

[legend]

Public Member Functions
void	instantiate ()

void	realize ()

	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type)
	Construct a QEMU device.

virtual void	before_end_of_elaboration () override

virtual void	end_of_elaboration () override

void	set_qom_type (std::string const &qom_type)

const char *	get_qom_type () const

qemu::Device	get_qemu_dev ()

QemuInstance &	get_qemu_inst ()

void	set_sysbus_as_parent_bus (void)

Public Member Functions inherited from QemuDeviceBaseIF
virtual bool	can_run ()

	SCP_LOGGER ()

Protected Attributes
QemuInstance &	m_inst

qemu::Device	m_dev

bool	m_instanciated = false

bool	m_realized = false

Detailed Description

QEMU device abstraction as a SystemC module.

This class abstract a QEMU device as a SystemC module. It is constructed using the QEMU instance it will lie in, and the QOM type name corresponding to the device. This class is meant to be inherited from by children classes that implement a given device.

The elaboration flow is as follows:

At construct time, nothing happen on the QEMU side.
When before_end_of_elaboration is called, the QEMU object correponding to this component is created. Children classes should always call the parent method when overriding it. Usually, they start by calling it and then set the QEMU properties on the device.
When end_of_elaboration is called, the device is realized. No more property can be set (unless particular cases such as some link properties) and the device can now be connected to busses and GPIO.

Constructor & Destructor Documentation

◆ QemuDevice()

QemuDevice::QemuDevice	(	const sc_core::sc_module_name &	name,
		QemuInstance &	inst,
		const char *	qom_type
	)

inline

Construct a QEMU device.

Parameters

[in]	name	SystemC module name
[in]	inst	QEMU instance the device will be created in
[in]	qom_type	Device QOM type name

Member Function Documentation

◆ end_of_elaboration()

virtual void QemuDevice::end_of_elaboration ( )

inlineoverridevirtual

Reimplemented in qemu_xhci::Device.

The documentation for this class was generated from the following file:

qemu-components/common/include/device.h
