Handles the DMI regions at the QEMU instance level. More...

#include <dmi-manager.h>

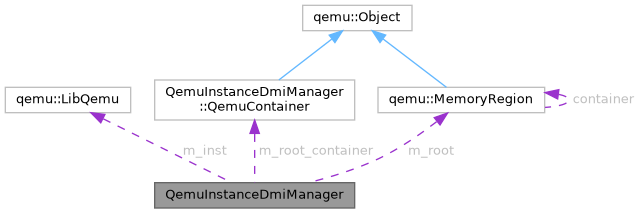

Collaboration diagram for QemuInstanceDmiManager:

[legend]

Classes
class	DmiRegion
	a DMI region More...

class	DmiRegionAlias
	An alias to a DMI region. More...

class	QemuContainer

Public Member Functions
void	get_region (const tlm::tlm_dmi &info, int fd=-1)
	This regions are added as subregions of the manager root memory region container. They can overlap, hence we use the priority mechanism provided by QEMU.

	QemuInstanceDmiManager (qemu::LibQemu &inst)

	QemuInstanceDmiManager (const QemuInstanceDmiManager &)=delete

	QemuInstanceDmiManager (QemuInstanceDmiManager &&a)=delete

void	init ()

DmiRegionAlias::Ptr	get_new_region_alias (const tlm::tlm_dmi &info, int fd=-1)
	Create a new alias for the DMI region designated by `info`

Protected Types
using	DmiRegionMap = std::map< DmiRegion::Key, DmiRegion >

Protected Attributes
qemu::LibQemu &	m_inst

QemuContainer	m_root_container

qemu::MemoryRegion	m_root
	The DMI manager maintains a "container" memory region as a root where "RAM" memory regions are added to as subregions. The subregions can overlap using the priority mechanism provided by QEMU. These "RAM" memory regions are transparent to clients of the DMI manager, and all aliases requested are built upon the root "container" memory region.

std::mutex	m_mutex

DmiRegionMap	m_regions
	A copy of each RAM memory region is kept here. Another is stored in the `m_root.m_subregions` vector. To make sure a DmiRegion gets removed, remove it both from here and from the `m_root.m_subregions`.

Detailed Description

Handles the DMI regions at the QEMU instance level.

This class handles the DMI regions at the level of a QEMU instance. For a given DMI region, we need to use a unique memory region (called the global memory region, in a sense that it is global to all the CPUs in the instance). Each CPU is then supposed to create an alias to this region to be able to access it. This is required to ensure QEMU sees this region as a unique piece of memory. Creating multiple regions mapping to the same host address leads QEMU into thinking that those are different data, and it won't properly invalidate corresponding TBs if CPUs do SMC (self modifying code).

NB this class's members should be called wil holding the QEMU IOTHREAD lock

The documentation for this class was generated from the following file:

qemu-components/common/include/dmi-manager.h
