Configurable Broker class, inherits from the 'standard' cci_utils broker, but adds 1/ The ability to be instanced in the constructor 2/ The ability to automatically load a configuration file 3/ Explicitly set parameters (from the constructor) are 'hidden' from the parent broker. More...

#include <cciutils.h>

Inheritance diagram for gs::ConfigurableBroker:

[legend]

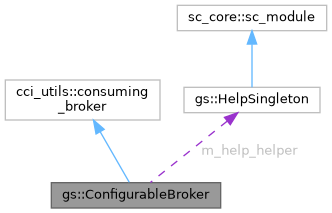

Collaboration diagram for gs::ConfigurableBroker:

[legend]

Public Member Functions
std::vector< cci_name_value_pair >	get_consumed_preset_values () const

	ConfigurableBroker (const std::string &name=BROKERNAME, std::function< void(std::string)> uninitialized_cb=nullptr)

	ConfigurableBroker (std::initializer_list< cci_name_value_pair > list, std::initializer_list< std::pair< std::string, std::string > > alias_list={}, std::function< void(std::string)> uninitialized_cb=nullptr)
	Construct a new Configurable Broker object from list. When constructed with a list of initialised parameters, all other params will be exported to the parent broker.

std::string	relname (const std::string &n) const

void	set_uninitialized_cb (std::function< void(std::string)> uninitialized_cb)

void	clear_uninitialized_cb ()

cci_originator	get_value_origin (const std::string &parname) const override

bool	has_preset_value (const std::string &parname) const override

cci_value	get_preset_cci_value (const std::string &parname) const override

void	lock_preset_value (const std::string &parname) override

cci_value	get_cci_value (const std::string &parname, const cci::cci_originator &originator=cci::cci_originator()) const override

void	add_param (cci_param_if *par) override

void	remove_param (cci_param_if *par) override

std::vector< cci_name_value_pair >	get_unconsumed_preset_values () const override

void	ignore_unconsumed_preset_values (const cci_preset_value_predicate &pred) override

cci_preset_value_range	get_unconsumed_preset_values (const cci_preset_value_predicate &pred) const override

void	set_preset_cci_value (const std::string &parname, const cci_value &cci_value, const cci_originator &originator) override

cci_param_untyped_handle	get_param_handle (const std::string &parname, const cci_originator &originator) const override

std::vector< cci_param_untyped_handle >	get_param_handles (const cci_originator &originator) const override

bool	is_global_broker () const override

Public Attributes
HelpSingleton *	m_help_helper

std::set< std::string >	hide

Protected Member Functions
cci_broker_if &	get_parent_broker ()

std::string	hierarchical_name ()

cci_originator	get_cci_originator (const char *n)

bool	is_log_param (const std::string &parname) const

virtual bool	sendToParent (const std::string &parname) const
	private function to determine if we send to the parent broker or not

void	initialize_params (const std::initializer_list< cci_name_value_pair > &list)
	Expose all params that have not been configured.

void	alias_params (const std::initializer_list< std::pair< std::string, std::string > > &list)

void	untyped_post_write_callback (const cci::cci_param_write_event<> &ev, cci::cci_param_handle synced_handle)

void	sync_values (cci::cci_param_handle _param_handle_1, cci::cci_param_handle _param_handle_2)
	Function for synchronizing the values of cci_parameter of OWNER modules via the PARAM_VALUE_SYNC.

void	alias_param (std::string a, std::string b)

void	alias_param_callback (const cci_param_untyped_handle &ph)

Protected Attributes
std::string	m_orig_name

cci_originator	m_originator

bool	has_parent

cci_broker_if &	m_parent

cci_param< ConfigurableBroker * > *	m_child_ref

std::unordered_set< std::string >	m_initialized

std::function< void(std::string)>	m_uninitialized_cb

std::vector< cci::cci_callback_untyped_handle >	post_write_cb_vec
	Callback Adaptor Objects.

cci_param_create_callback_handle	register_cb

std::vector< std::pair< std::string, std::string > >	alias_list

Friends
class	PrivateConfigurableBroker

class	cci_value_converter< ConfigurableBroker >

Detailed Description

Configurable Broker class, inherits from the 'standard' cci_utils broker, but adds 1/ The ability to be instanced in the constructor 2/ The ability to automatically load a configuration file 3/ Explicitly set parameters (from the constructor) are 'hidden' from the parent broker.

Constructor & Destructor Documentation

◆ ConfigurableBroker()

gs::ConfigurableBroker::ConfigurableBroker	(	std::initializer_list< cci_name_value_pair >	list,
		std::initializer_list< std::pair< std::string, std::string > >	alias_list = `{}`,
		std::function< void(std::string)>	uninitialized_cb = `nullptr`
	)

inline

Construct a new Configurable Broker object from list. When constructed with a list of initialised parameters, all other params will be exported to the parent broker.

Parameters

list

Member Function Documentation

◆ initialize_params()

void gs::ConfigurableBroker::initialize_params ( const std::initializer_list< cci_name_value_pair > & list )

inlineprotected

Expose all params that have not been configured.

Parameters

list

◆ sync_values()

void gs::ConfigurableBroker::sync_values	(	cci::cci_param_handle	_param_handle_1,
		cci::cci_param_handle	_param_handle_2
	)

inlineprotected

Function for synchronizing the values of cci_parameter of OWNER modules via the PARAM_VALUE_SYNC.

Parameters

_param_handle_1	The first parameter to be synced
_param_handle_2	The second parameter to be synced

Returns: void

The documentation for this class was generated from the following file:

systemc-components/common/include/cciutils.h
