gs::ModuleFactory::ContainerBase Class Reference

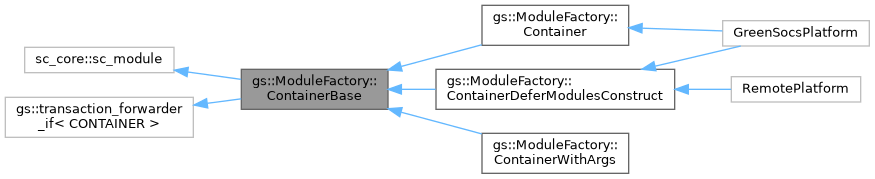

Inheritance diagram for gs::ModuleFactory::ContainerBase:

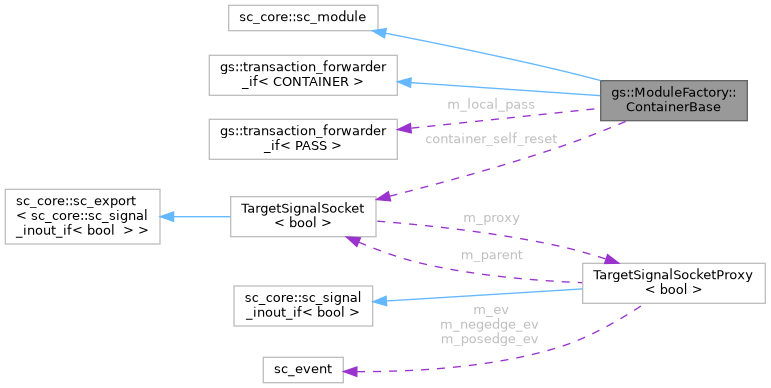

Collaboration diagram for gs::ModuleFactory::ContainerBase:

Public Types
using	tlm_initiator_socket_type = tlm_utils::simple_initiator_socket_b< ContainerBase, DEFAULT_TLM_BUSWIDTH, tlm::tlm_base_protocol_types, sc_core::SC_ZERO_OR_MORE_BOUND >
using	tlm_target_socket_type = tlm_utils::simple_target_socket_tagged_b< ContainerBase, DEFAULT_TLM_BUSWIDTH, tlm::tlm_base_protocol_types, sc_core::SC_ZERO_OR_MORE_BOUND >

Public Member Functions
	SCP_LOGGER (())
	construct a module using the pre-register CCI functor, with typed arguments from a CCI value list. The functor is expected to call new.
sc_core::sc_module *	construct_module (std::string moduletype, sc_core::sc_module_name name, cci::cci_value_list args)
sc_core::sc_module *	construct_module (std::string moduletype, sc_core::sc_module_name name)
	Helper to construct a module that takes no arguments.
std::string	get_parent_name (const std::string &module_name)
bool	is_container_arg_mod_name (const std::string &name)
cci::cci_value_list	get_module_args (std::string modulename)
	Get the module args helper to find argument list for a module constructor.
template<typename I , typename T >
bool	try_bind (sc_core::sc_object *i_obj, sc_core::sc_object *t_obj)
void	name_bind (sc_core::sc_module *m)
	Bind all known port types.
template<unsigned int BIND_BUSWIDTH>
bool	try_bind_all (sc_core::sc_object *i_obj, sc_core::sc_object *t_obj)
std::list< std::string >	PriorityConstruct (void)
void	register_module_from_dylib (sc_core::sc_module_name name)
void	ModulesConstruct (void)
std::shared_ptr< sc_core::sc_module >	find_module_by_name (const std::string &mod_name)
template<typename T >
std::shared_ptr< sc_core::sc_module >	find_module_by_cci_param (const std::string &cci_param_name, const T &cmp_value)
	ContainerBase (const sc_core::sc_module_name _n, bool defer_modules_construct, sc_core::sc_object *p_container_mod_arg=nullptr)
	construct a Container, and all modules within it, and perform binding
void	fw_b_transport (int id, tlm::tlm_generic_payload &trans, sc_core::sc_time &delay) override
unsigned int	fw_transport_dbg (int id, tlm::tlm_generic_payload &trans) override
bool	fw_get_direct_mem_ptr (int id, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override
void	fw_invalidate_direct_mem_ptr (sc_dt::uint64 start, sc_dt::uint64 end) override
void	fw_handle_signal (int id, bool value) override

Public Attributes
cci::cci_broker_handle	m_broker
cci::cci_param< std::string >	moduletype
cci::cci_param< uint32_t >	p_tlm_initiator_ports_num
cci::cci_param< uint32_t >	p_tlm_target_ports_num
cci::cci_param< uint32_t >	p_initiator_signals_num
cci::cci_param< uint32_t >	p_target_signals_num
sc_core::sc_vector< tlm_initiator_socket_type >	initiator_sockets
sc_core::sc_vector< tlm_target_socket_type >	target_sockets
sc_core::sc_vector< InitiatorSignalSocket< bool > >	initiator_signal_sockets
sc_core::sc_vector< TargetSignalSocket< bool > >	target_signal_sockets
TargetSignalSocket< bool >	container_self_reset
transaction_forwarder_if< PASS > *	m_local_pass
std::vector< cci::cci_param< gs::cci_constructor_vl > * >	registered_mods
sc_core::sc_object *	container_mod_arg

Constructor & Destructor Documentation

ContainerBase()

gs::ModuleFactory::ContainerBase::ContainerBase ( const sc_core::sc_module_name  _n, bool  defer_modules_construct, sc_core::sc_object *  p_container_mod_arg = nullptr  )

inline

construct a Container, and all modules within it, and perform binding

Parameters

_n	name to give the container

Member Function Documentation

construct_module()

sc_core::sc_module * gs::ModuleFactory::ContainerBase::construct_module ( std::string  moduletype, sc_core::sc_module_name  name, cci::cci_value_list  args  )

inline

(m_fac)(name, args) will return raw pointer of unmanaged dynamically allocated moduletype: new moduletype(name, args)

fw_b_transport()

void gs::ModuleFactory::ContainerBase::fw_b_transport ( int  id, tlm::tlm_generic_payload &  trans, sc_core::sc_time &  delay  )

inlineoverridevirtual

Implements gs::transaction_forwarder_if< CONTAINER >.

fw_get_direct_mem_ptr()

bool gs::ModuleFactory::ContainerBase::fw_get_direct_mem_ptr ( int  id, tlm::tlm_generic_payload &  trans, tlm::tlm_dmi &  dmi_data  )

inlineoverridevirtual

Implements gs::transaction_forwarder_if< CONTAINER >.

fw_handle_signal()

void gs::ModuleFactory::ContainerBase::fw_handle_signal ( int  id, bool  value  )

inlineoverridevirtual

Implements gs::transaction_forwarder_if< CONTAINER >.

fw_invalidate_direct_mem_ptr()

void gs::ModuleFactory::ContainerBase::fw_invalidate_direct_mem_ptr ( sc_dt::uint64  start, sc_dt::uint64  end  )

inlineoverridevirtual

Implements gs::transaction_forwarder_if< CONTAINER >.

fw_transport_dbg()

unsigned int gs::ModuleFactory::ContainerBase::fw_transport_dbg ( int  id, tlm::tlm_generic_payload &  trans  )

inlineoverridevirtual

Implements gs::transaction_forwarder_if< CONTAINER >.

get_module_args()

cci::cci_value_list gs::ModuleFactory::ContainerBase::get_module_args ( std::string  modulename )

inline

Get the module args helper to find argument list for a module constructor.

Parameters

modulename

name of the module from which to get the .arg[...] list

Returns

cci::cci_value_list

name_bind()

void gs::ModuleFactory::ContainerBase::name_bind ( sc_core::sc_module *  m )

inline

Bind all known port types.

Parameters

modulename	The LOCAL name of the module to bind it's ports
type	The type of the module
m	The module itself.

SCP_LOGGER()

gs::ModuleFactory::ContainerBase::SCP_LOGGER

(

()

)

construct a module using the pre-register CCI functor, with typed arguments from a CCI value list. The functor is expected to call new.

Parameters

moduletype	The name of the type of module to be constructed
name	The name to be given to this instance of the module
args	The CCI list of arguments passed to the constructor (which will be type punned)

Returns

sc_core::sc_module* The module constructed.

try_bind_all()

template<unsigned int BIND_BUSWIDTH>

bool gs::ModuleFactory::ContainerBase::try_bind_all ( sc_core::sc_object *  i_obj, sc_core::sc_object *  t_obj  )

inline

FIXME: There should be a better way of doing that.Trying to bind every possible combination of socket types is not scalable nor readable solution.

---

The documentation for this class was generated from the following file:

• systemc-components/common/include/module_factory_container.h
