gs::gs_register< TYPE > Class Template Reference

Class that encapsulates a 'register' that proxies it's data via a tlm interface, and uses callbacks (on a tlm interface) More...

#include <registers.h>

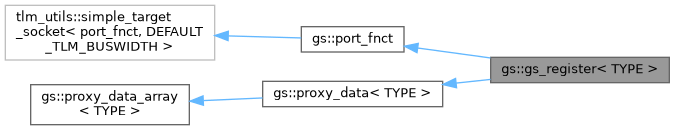

Inheritance diagram for gs::gs_register< TYPE >:

Collaboration diagram for gs::gs_register< TYPE >:

Public Member Functions
	gs_register (std::string _name, std::string path="", uint64_t offset=0, uint64_t number=1, TYPE mask=gs_full_mask< TYPE >())
void	operator= (TYPE value)
	operator TYPE ()
void	operator= (gs_register< TYPE > &other)
void	operator+= (TYPE other)
void	operator-= (TYPE other)
void	operator/= (TYPE other)
void	operator*= (TYPE other)
void	operator&= (TYPE other)
void	operator|= (TYPE other)
void	operator^= (TYPE other)
void	operator<<= (TYPE other)
void	operator>>= (TYPE other)
TYPE &	operator[] (int idx)
void	get (TYPE *dst, uint64_t idx, uint64_t length)
void	set (TYPE *src, uint64_t idx, uint64_t length, bool use_mask=true)
gs_bitfield< TYPE >	operator[] (gs_field< TYPE > &f)
std::string	get_regname () const
std::string	get_path () const
uint64_t	get_offset () const
uint64_t	get_size () const
void	set_mask (TYPE mask)
TYPE	get_mask () const
void	capture_txn_pre (tlm::tlm_generic_payload &txn) override
void	handle_mask_post (tlm::tlm_generic_payload &txn) override
Public Member Functions inherited from gs::port_fnct
void	pre_read (tlm_fnct::TLMFUNC cb)
void	pre_write (tlm_fnct::TLMFUNC cb)
void	post_read (tlm_fnct::TLMFUNC cb)
void	post_write (tlm_fnct::TLMFUNC cb)
	port_fnct (std::string name, std::string path_name)
void	register_transport_dbg_func (std::function< unsigned int(tlm::tlm_generic_payload &)> fn)
Public Member Functions inherited from gs::proxy_data< TYPE >
TYPE	get ()
	operator TYPE ()
void	set (TYPE value)
void	operator= (TYPE value)
	proxy_data (scp::scp_logger_cache &logger, std::string name, std::string path_name, uint64_t offset=0, uint64_t number=1, uint64_t start=0, uint64_t length=sizeof(TYPE) *8, TYPE mask=gs_full_mask< TYPE >())
Public Member Functions inherited from gs::proxy_data_array< TYPE >
void	get (TYPE *dst, uint64_t idx=0, uint64_t length=1)
void	set (TYPE *src, uint64_t idx=0, uint64_t length=1, bool use_mask=true)
void	write_with_mask (TYPE *src, TYPE *dst, uint64_t length)
TYPE &	operator[] (int idx)
void	invalidate_direct_mem_ptr (sc_dt::uint64 start, sc_dt::uint64 end)
	proxy_data_array (scp::scp_logger_cache &logger, std::string name, std::string path_name, uint64_t _offset=0, uint64_t number=1, TYPE mask=gs_full_mask< TYPE >())

Additional Inherited Members
Public Attributes inherited from gs::proxy_data_array< TYPE >
std::string	m_path_name
cci::cci_param< uint64_t >	p_number
cci::cci_param< uint64_t >	p_offset
cci::cci_param< uint64_t >	p_size
cci::cci_param< TYPE >	p_mask
cci::cci_param< bool >	p_relative_addresses
tlm_utils::simple_initiator_socket< proxy_data_array, DEFAULT_TLM_BUSWIDTH >	initiator_socket
Protected Member Functions inherited from gs::port_fnct
std::string	parent (std::string name)

Detailed Description

template<class TYPE = uint32_t>
class gs::gs_register< TYPE >

Class that encapsulates a 'register' that proxies it's data via a tlm interface, and uses callbacks (on a tlm interface)

Member Function Documentation

capture_txn_pre()

template<class TYPE = uint32_t>

void gs::gs_register< TYPE >::capture_txn_pre ( tlm::tlm_generic_payload &  txn )

inlineoverridevirtual

Implements gs::port_fnct.

handle_mask_post()

template<class TYPE = uint32_t>

void gs::gs_register< TYPE >::handle_mask_post ( tlm::tlm_generic_payload &  txn )

inlineoverridevirtual

Implements gs::port_fnct.

---

The documentation for this class was generated from the following file:

• systemc-components/common/include/registers.h
