Inheritance diagram for gs::loader< BUSWIDTH >:

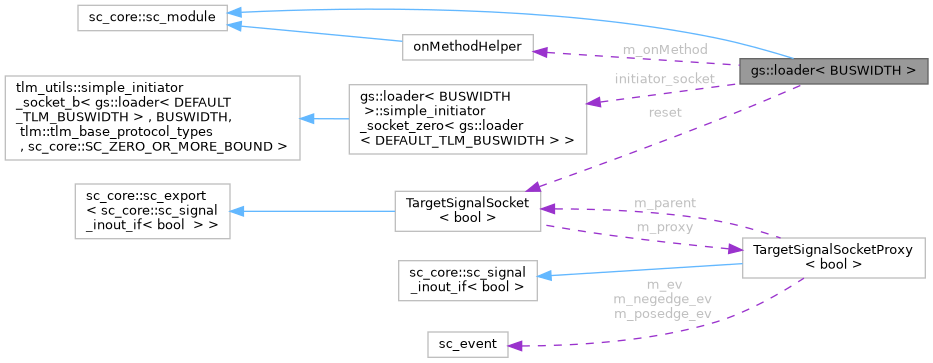

Collaboration diagram for gs::loader< BUSWIDTH >:

[legend]

Public Member Functions
	loader (sc_core::sc_module_name name)

void	doreset (bool value)

	loader (sc_core::sc_module_name name, std::function< void(const uint8_t *data, uint64_t offset, uint64_t len)> _write)

void	file_load (std::string filename, uint64_t addr, uint64_t file_offset=0, uint64_t file_data_len=std::numeric_limits< uint64_t >::max())
	This function reads a file into memory and can be used to load an image.

void	zip_file_load (zip_t *p_archive, const std::string &archive_name, uint64_t addr, const std::string &file_name="", uint64_t file_offset=0, uint64_t file_data_len=0, bool is_compressed=false, const std::string &uncompressed_file_name="")

zip_int64_t	zip_read_file (zip_t *z_archive, const std::string &archive_name, const zip_stat_t &z_stat, std::vector< uint8_t > &data, uint64_t file_offset, uint64_t file_data_len)

void	csv_load (std::string filename, uint64_t offset, std::string addr_str, std::string value_str, bool byte_swap)

void	str_load (std::string data, uint64_t addr)

void	ptr_load (uint8_t *data, uint64_t addr, uint64_t len)

void	elf_load (const std::string &path)

Public Attributes
simple_initiator_socket_zero< loader< BUSWIDTH > >	initiator_socket

TargetSignalSocket< bool >	reset

onMethodHelper	m_onMethod

Member Function Documentation

◆ file_load()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH>

void gs::loader< BUSWIDTH >::file_load	(	std::string	filename,
		uint64_t	addr,
		uint64_t	file_offset = `0`,
		uint64_t	file_data_len = `std::numeric_limits<uint64_t>::max()`
	)

inline

This function reads a file into memory and can be used to load an image.

Parameters

filename	Name of the file
addr	the address where the memory file is to be read

The documentation for this class was generated from the following file:
