gs::router< BUSWIDTH, CacheType > Class Template Reference

A SystemC TLM router module for transaction routing based on address. More...

#include <router.h>

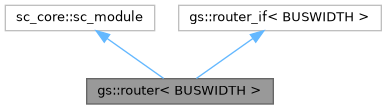

Inheritance diagram for gs::router< BUSWIDTH, CacheType >:

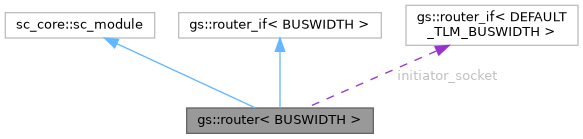

Collaboration diagram for gs::router< BUSWIDTH, CacheType >:

Public Member Functions
	router (const sc_core::sc_module_name &nm, cci::cci_broker_handle broker=cci::cci_get_broker())
	Constructor for the router module.
	router ()=delete
	Deleted default constructor to enforce named instantiation.
	router (const router &)=delete
	Deleted copy constructor.
	~router ()
	Destructor for the router module. Cleans up any remaining PathIDExtension objects in the pool.
void	add_target (TargetSocket &t, const uint64_t address, uint64_t size, bool masked=true, unsigned int priority=0)
	Adds a target to the router's address map.
virtual void	add_initiator (InitiatorSocket &i)
	Adds an initiator to the router.
void	get_cache_stats (uint64_t &hits, uint64_t &misses) const
	Get cache statistics (hits and misses).
void	reset_cache_stats ()
	Reset cache statistics to zero.
Public Member Functions inherited from gs::router_if< BUSWIDTH >
void	rename_last (std::string s)
std::vector< std::shared_ptr< target_info > >	get_bound_targets ()

Public Attributes
initiator_socket_type	initiator_socket
	Initiator socket to connect to targets.
tlm_utils::multi_passthrough_target_socket< router< BUSWIDTH, CacheType >, BUSWIDTH >	target_socket
	Target socket to receive transactions from initiators.
cci::cci_broker_handle	m_broker
	CCI broker handle for configuration parameters.

Protected Member Functions
std::shared_ptr< target_info >	decode_address (tlm::tlm_generic_payload &trans) override
	Decodes the address from a TLM generic payload to find the target.
virtual void	before_end_of_elaboration () override
	Called before end of elaboration to ensure lazy initialization.
Protected Member Functions inherited from gs::router_if< BUSWIDTH >
std::string	parent (std::string name)
std::string	nameFromSocket (std::string s)

Additional Inherited Members
Protected Attributes inherited from gs::router_if< BUSWIDTH >
std::vector< std::shared_ptr< target_info > >	bound_targets

Detailed Description

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>
class gs::router< BUSWIDTH, CacheType >

A SystemC TLM router module for transaction routing based on address.

This router connects multiple initiator sockets to multiple target sockets, routing transactions based on the address map configured via CCI parameters. It supports DMI, debug transport, and various TLM extensions.

Template Parameters

BUSWIDTH

The TLM bus width in bits.

Constructor & Destructor Documentation

router()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>

gs::router< BUSWIDTH, CacheType >::router ( const sc_core::sc_module_name &  nm, cci::cci_broker_handle  broker = cci::cci_get_broker()  )

inlineexplicit

Constructor for the router module.

Initializes the base sc_module, initiator and target sockets, address map, CCI broker, and the lazy initialization parameter. Registers transport methods.

Parameters

nm	SystemC module name.
broker	Optional CCI broker handle. Defaults to the global broker.

Member Function Documentation

add_initiator()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>

virtual void gs::router< BUSWIDTH, CacheType >::add_initiator ( InitiatorSocket &  i )

inlinevirtual

Adds an initiator to the router.

This method handles the binding between the initiator's port and the router's target socket.

Parameters

i	The initiator socket to add.

add_target()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>

void gs::router< BUSWIDTH, CacheType >::add_target ( TargetSocket &  t, const uint64_t  address, uint64_t  size, bool  masked = true, unsigned int  priority = 0  )

inline

Adds a target to the router's address map.

This method configures CCI parameters for the target (address, size, relative_addresses) and binds the target socket to the router's initiator socket.

Parameters

t	The target socket to add.
address	The base address of the target.
size	The size of the target's address range.
masked	Boolean indicating if relative addresses should be used (defaults to true).
priority	unsigned int priority, lower values have higher priorities

before_end_of_elaboration()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>

virtual void gs::router< BUSWIDTH, CacheType >::before_end_of_elaboration ( )

inlineoverrideprotectedvirtual

Called before end of elaboration to ensure lazy initialization.

If lazy_init is false, this method triggers the lazy_initialize process.

decode_address()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>

std::shared_ptr< target_info > gs::router< BUSWIDTH, CacheType >::decode_address ( tlm::tlm_generic_payload &  trans )

inlineoverrideprotectedvirtual

Decodes the address from a TLM generic payload to find the target.

This virtual function, overriding the base class, ensures that the router is initialized (via lazy_initialize) before attempting to find the target_info associated with the transaction's address using the internal addressMap.

Parameters

trans

The TLM generic payload.

Returns

A shared_ptr to the target_info object if found, otherwise nullptr.

Implements gs::router_if< BUSWIDTH >.

get_cache_stats()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>

void gs::router< BUSWIDTH, CacheType >::get_cache_stats ( uint64_t &  hits, uint64_t &  misses  ) const

inline

Get cache statistics (hits and misses).

This method exposes the cache performance metrics for benchmarking and analysis.

Parameters

hits	Output parameter for number of cache hits
misses	Output parameter for number of cache misses

reset_cache_stats()

template<unsigned int BUSWIDTH = DEFAULT_TLM_BUSWIDTH, template< typename, typename > class CacheType = AddrMapNoCache>

void gs::router< BUSWIDTH, CacheType >::reset_cache_stats ( )

inline

Reset cache statistics to zero.

This method should be called before each benchmark iteration to ensure accurate measurement of cache performance for that specific test.

---

The documentation for this class was generated from the following file:

• systemc-components/router/include/router.h
