gs::runonsysc Class Reference

Inheritance diagram for gs::runonsysc:

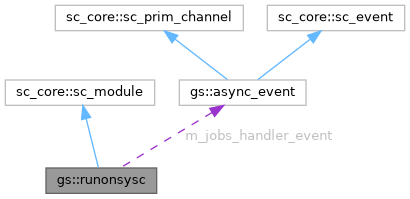

Collaboration diagram for gs::runonsysc:

Classes
class	AsyncJob

Public Member Functions
	runonsysc (const sc_core::sc_module_name &n=sc_core::sc_module_name("run-on-sysc"))
void	cancel_pendings ()
	Cancel all pending jobs.
void	cancel_all ()
	Cancel all pending and running jobs.
void	stop ()
void	end_of_simulation ()
void	fork_on_systemc (std::function< void()> job_entry)
bool	run_on_sysc (std::function< void()> job_entry, bool wait=true)
	Run a job on the SystemC kernel thread.
bool	is_on_sysc () const

Protected Member Functions
void	jobs_handler ()
void	cancel_pendings_locked ()

Protected Attributes
std::thread::id	m_thread_id
std::queue< AsyncJob::Ptr >	m_async_jobs
AsyncJob::Ptr	m_running_job
std::mutex	m_async_jobs_mutex
async_event	m_jobs_handler_event
std::atomic< bool >	running = true

Member Function Documentation

cancel_all()

void gs::runonsysc::cancel_all ( )

inline

Cancel all pending and running jobs.

@detail Cancel all the pending jobs and the currently running job. The callers will be unblocked if they are waiting for the job. Note that if the currently running job is resumed, the behaviour is undefined. This method is meant to be called after simulation has ended.

cancel_pendings()

void gs::runonsysc::cancel_pendings ( )

inline

Cancel all pending jobs.

@detail Cancel all the pending jobs. The callers will be unblocked if they are waiting for the job.

is_on_sysc()

bool gs::runonsysc::is_on_sysc ( ) const

inline

Returns

Whether we are on SystemC thread

run_on_sysc()

bool gs::runonsysc::run_on_sysc ( std::function< void()>  job_entry, bool  wait = true  )

inline

Run a job on the SystemC kernel thread.

Parameters

[in]	job_entry	The job to run
[in]	wait	If true, wait for job completion

Returns

true if the job has been succesfully executed or if wait was false, false if it has been cancelled (see RunOnSysC::cancel_all).

---

The documentation for this class was generated from the following file:

• systemc-components/common/include/runonsysc.h
