Inheritance diagram for ibex_uart:

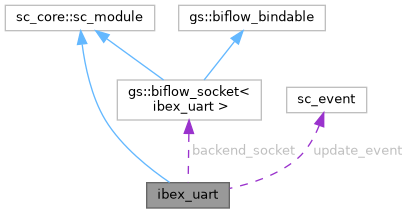

Collaboration diagram for ibex_uart:

[legend]

Public Types
enum	Reg { REG_ITSTAT = 0x00 , REG_ITEN = 0x04 , REG_ITTEST = 0x08 , REG_CTRL = 0x0c , REG_STATUS = 0x10 , REG_RDATA = 0x14 , REG_WDATA = 0x18 }

enum	{ FIELD_IT_RXWATERMARK = 0x2 , FIELD_CTRL_TXENABLE = 0x1 , FIELD_CTRL_RXENABLE = 0x2 , FIELD_STATUS_TXEMPTY = 0x04 , FIELD_STATUS_RXIDLE = 0x10 , FIELD_STATUS_RXEMPTY = 0x20 }

Public Member Functions
void	update_irqs (void)

void	recv (uint32_t value)

void	receive (tlm::tlm_generic_payload &txn, sc_core::sc_time &t)

	ibex_uart (sc_core::sc_module_name name)

void	b_transport (tlm::tlm_generic_payload &trans, sc_core::sc_time &delay)

uint64_t	reg_read (uint64_t addr)

void	reg_write (uint64_t addr, uint32_t data)

void	before_end_of_elaboration ()

Public Attributes
sc_core::sc_out< bool >	irq_rxwatermark

uint32_t	it_state

uint32_t	it_enable

uint32_t	ctrl

uint32_t	status

uint8_t	rdata

tlm_utils::simple_target_socket< ibex_uart >	socket

gs::biflow_socket< ibex_uart >	backend_socket

sc_core::sc_event	update_event

The documentation for this class was generated from the following file:
