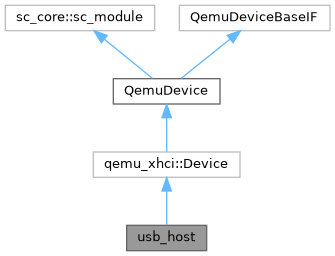

Inheritance diagram for usb_host:

[legend]

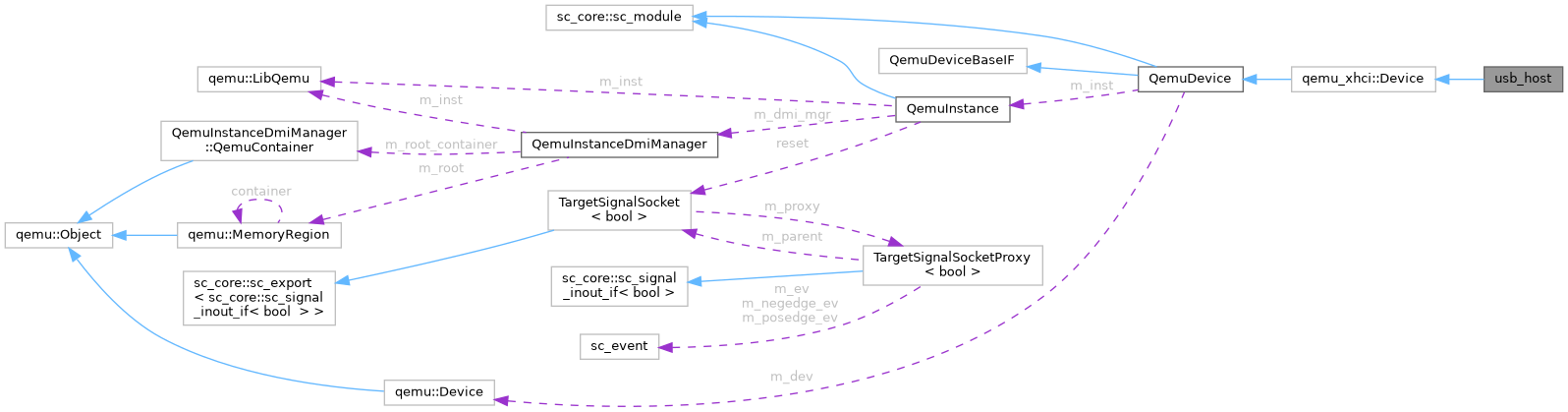

Collaboration diagram for usb_host:

[legend]

Public Member Functions
	usb_host (const sc_core::sc_module_name &name, sc_core::sc_object o, sc_core::sc_object t)

	usb_host (const sc_core::sc_module_name &n, QemuInstance &inst, qemu_xhci *xhci)

Public Member Functions inherited from qemu_xhci::Device
	Device (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type)

void	end_of_elaboration () override
	We cannot do the end_of_elaboration at this point because we need the USB bus (created only during the USB host realize step)

Public Member Functions inherited from QemuDevice
void	instantiate ()

void	realize ()

	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type)
	Construct a QEMU device.

	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char qom_type, const char id)
	Construct a QEMU device.

virtual void	before_end_of_elaboration () override

void	set_qom_type (std::string const &qom_type)

const char *	get_qom_type () const

const char *	get_id () const

qemu::Device	get_qemu_dev ()

QemuInstance &	get_qemu_inst ()

void	set_sysbus_as_parent_bus (void)

Public Member Functions inherited from QemuDeviceBaseIF
virtual bool	can_run ()

	SCP_LOGGER ()

Protected Attributes
cci::cci_param< uint32_t >	p_hostbus

cci::cci_param< uint32_t >	p_hostaddr

cci::cci_param< std::string >	p_hostport

cci::cci_param< uint32_t >	p_vendorid

cci::cci_param< uint32_t >	p_productid

cci::cci_param< uint32_t >	p_isobufs

cci::cci_param< uint32_t >	p_isobsize

cci::cci_param< bool >	p_guest_reset

cci::cci_param< bool >	p_guest_resets_all

cci::cci_param< bool >	p_suppress_remote_wake

Protected Attributes inherited from QemuDevice
QemuInstance &	m_inst

qemu::Device	m_dev

bool	m_instanciated = false

bool	m_realized = false

Additional Inherited Members
Public Attributes inherited from qemu_xhci::Device
std::function< void()>	set_dev_props

Protected Member Functions inherited from qemu_xhci::Device
virtual void	usb_realize (qemu::Bus &usb_bus)

The documentation for this class was generated from the following file:
