QemuInitiatorSignalSocket Class Reference

A QEMU output GPIO exposed as a InitiatorSignalSocket<bool> More...

#include <qemu-initiator-signal-socket.h>

Inheritance diagram for QemuInitiatorSignalSocket:

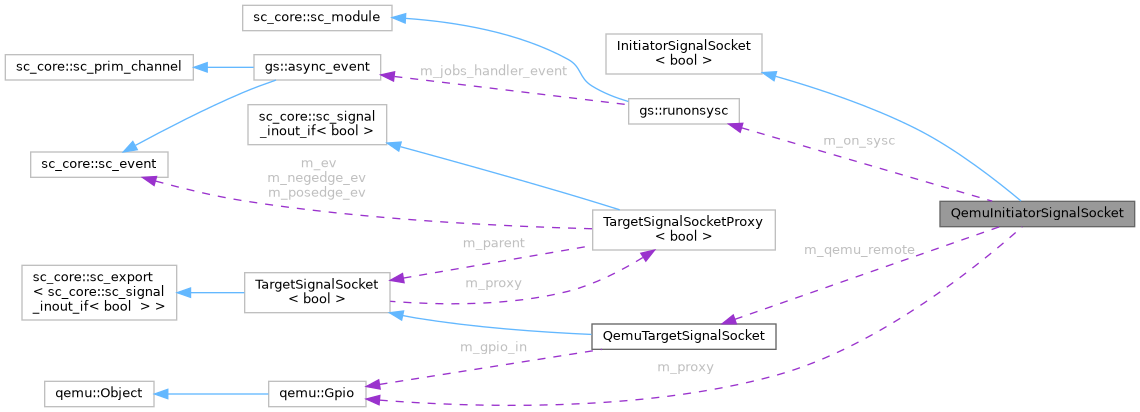

Collaboration diagram for QemuInitiatorSignalSocket:

Public Member Functions
	QemuInitiatorSignalSocket (const char *name)
void	init (qemu::Device dev, int gpio_idx)
	Initialize this socket with a device and a GPIO index.
void	init_named (qemu::Device dev, const char *gpio_name, int gpio_idx)
	Initialize this socket with a device, a GPIO namespace, and a GPIO index.
void	init_sbd (qemu::SysBusDevice sbd, int gpio_idx)
	Initialize this socket with a QEMU SysBusDevice, and a GPIO index.

Protected Member Functions
void	event_cb (bool val)
void	init_qemu_to_sysc_gpio_proxy (qemu::Device &dev)
void	init_internal (qemu::Device &dev)

Protected Attributes
qemu::Gpio	m_proxy
gs::runonsysc	m_on_sysc
QemuTargetSignalSocket *	m_qemu_remote = nullptr

Detailed Description

A QEMU output GPIO exposed as a InitiatorSignalSocket<bool>

This class exposes an output GPIO of a QEMU device as a InitiatorSignalSocket<bool>. It can be connected to an sc_core::sc_port<bool> or a TargetSignalSocket<bool>. Modifications to the interal QEMU GPIO will be propagated through the socket.

If this socket happens to be connected to a QemuTargetSignalSocket, the propagation is done directly within QEMU and do not go through the SystemC kernel. Note that this is only true if the GPIOs wrapped by both this socket and the remote socket lie in the same QEMU instance.

Member Function Documentation

init()

void QemuInitiatorSignalSocket::init ( qemu::Device  dev, int  gpio_idx  )

inline

Initialize this socket with a device and a GPIO index.

This method initializes the socket using the given QEMU device and the corresponding GPIO index in this device. See the QEMU API and the device you want to wrap to know what index to use here.

Parameters

[in]	dev	The QEMU device
[in]	gpio_idx	The GPIO index within the device

init_named()

void QemuInitiatorSignalSocket::init_named ( qemu::Device  dev, const char *  gpio_name, int  gpio_idx  )

inline

Initialize this socket with a device, a GPIO namespace, and a GPIO index.

This method initializes the socket using the given QEMU device and the corresponding GPIO (namespace, index) pair in this device. See the QEMU API and the device you want to wrap to know what namespace/index to use here.

Parameters

[in]	dev	The QEMU device
[in]	gpio_name	The GPIO namespace within the device
[in]	gpio_idx	The GPIO index within the device

init_sbd()

void QemuInitiatorSignalSocket::init_sbd ( qemu::SysBusDevice  sbd, int  gpio_idx  )

inline

Initialize this socket with a QEMU SysBusDevice, and a GPIO index.

This method initializes the socket using the given QEMU SysBusDevice (SBD) and the corresponding GPIO index) in this SBD. See the QEMU API and the SBD you want to wrap to know what index to use here. This is only for "sysbus_irq", if you want to wrap a normal gpio, just use init or init_named.

Parameters

[in]	sbd	The QEMU SysBusDevice
[in]	gpio_idx	The GPIO index within the SBD

---

The documentation for this class was generated from the following file:

• qemu-components/common/include/ports/qemu-initiator-signal-socket.h
