#include <module_factory_container.h>

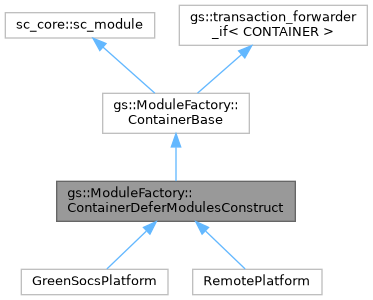

Inheritance diagram for gs::ModuleFactory::ContainerDeferModulesConstruct:

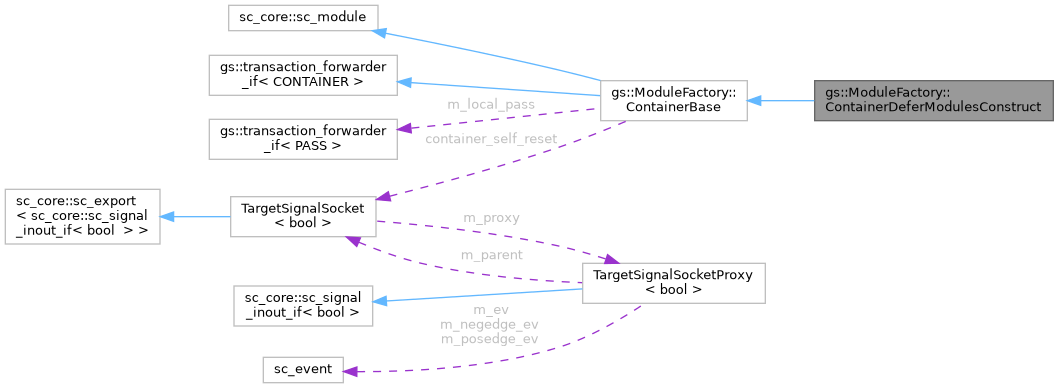

Collaboration diagram for gs::ModuleFactory::ContainerDeferModulesConstruct:
Public Member Functions | |
| SCP_LOGGER (()) | |
| ContainerDeferModulesConstruct (const sc_core::sc_module_name &n) | |
 Public Member Functions inherited from gs::ModuleFactory::ContainerBase | |
| SCP_LOGGER (()) | |
| construct a module using the pre-register CCI functor, with typed arguments from a CCI value list. The functor is expected to call new. | |
| sc_core::sc_module * | construct_module (std::string moduletype, sc_core::sc_module_name name, cci::cci_value_list args) |
| sc_core::sc_module * | construct_module (std::string moduletype, sc_core::sc_module_name name) |
| Helper to construct a module that takes no arguments. | |
| std::string | get_parent_name (const std::string &module_name) |
| bool | is_container_arg_mod_name (const std::string &name) |
| cci::cci_value_list | get_module_args (std::string modulename) |
| Get the module args helper to find argument list for a module constructor. | |
| template<typename I , typename T > | |
| bool | try_bind (sc_core::sc_object *i_obj, sc_core::sc_object *t_obj) |
| void | name_bind (sc_core::sc_module *m) |
| Bind all known port types. | |
| template<unsigned int BIND_BUSWIDTH> | |
| bool | try_bind_all (sc_core::sc_object *i_obj, sc_core::sc_object *t_obj) |
| std::list< std::string > | PriorityConstruct (void) |
| void | register_module_from_dylib (sc_core::sc_module_name name) |
| void | ModulesConstruct (void) |
| std::shared_ptr< sc_core::sc_module > | find_module_by_name (const std::string &mod_name) |
| template<typename T > | |
| std::shared_ptr< sc_core::sc_module > | find_module_by_cci_param (const std::string &cci_param_name, const T &cmp_value) |
| ContainerBase (const sc_core::sc_module_name _n, bool defer_modules_construct, sc_core::sc_object *p_container_mod_arg=nullptr) | |
| construct a Container, and all modules within it, and perform binding | |
| void | fw_b_transport (int id, tlm::tlm_generic_payload &trans, sc_core::sc_time &delay) override |
| unsigned int | fw_transport_dbg (int id, tlm::tlm_generic_payload &trans) override |
| bool | fw_get_direct_mem_ptr (int id, tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data) override |
| void | fw_invalidate_direct_mem_ptr (sc_dt::uint64 start, sc_dt::uint64 end) override |
| void | fw_handle_signal (int id, bool value) override |
Additional Inherited Members | |
| Public Types inherited from gs::ModuleFactory::ContainerBase | |
| using | tlm_initiator_socket_type = tlm_utils::simple_initiator_socket_b< ContainerBase, DEFAULT_TLM_BUSWIDTH, tlm::tlm_base_protocol_types, sc_core::SC_ZERO_OR_MORE_BOUND > |
| using | tlm_target_socket_type = tlm_utils::simple_target_socket_tagged_b< ContainerBase, DEFAULT_TLM_BUSWIDTH, tlm::tlm_base_protocol_types, sc_core::SC_ZERO_OR_MORE_BOUND > |
| Public Attributes inherited from gs::ModuleFactory::ContainerBase | |
| cci::cci_broker_handle | m_broker |
| cci::cci_param< std::string > | moduletype |
| cci::cci_param< uint32_t > | p_tlm_initiator_ports_num |
| cci::cci_param< uint32_t > | p_tlm_target_ports_num |
| cci::cci_param< uint32_t > | p_initiator_signals_num |
| cci::cci_param< uint32_t > | p_target_signals_num |
| sc_core::sc_vector< tlm_initiator_socket_type > | initiator_sockets |
| sc_core::sc_vector< tlm_target_socket_type > | target_sockets |
| sc_core::sc_vector< InitiatorSignalSocket< bool > > | initiator_signal_sockets |
| sc_core::sc_vector< TargetSignalSocket< bool > > | target_signal_sockets |
| TargetSignalSocket< bool > | container_self_reset |
| transaction_forwarder_if< PASS > * | m_local_pass |
| std::vector< cci::cci_param< gs::cci_constructor_vl > * > | registered_mods |
| sc_core::sc_object * | container_mod_arg |
Detailed Description
ModulesConstruct() function should be called explicitly by the user of the class. The function is not called at ContainerDeferModulesConstruct constructor.
The documentation for this class was generated from the following file:
- systemc-components/common/include/module_factory_container.h
