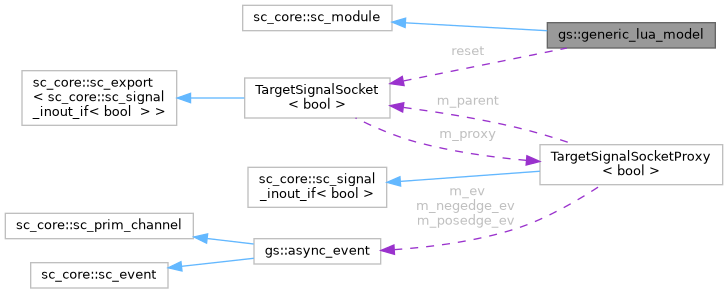

Collaboration diagram for gs::generic_lua_model:

[legend]

Classes
struct	enum_hash

struct	register_info_t

Public Member Functions
	generic_lua_model (sc_core::sc_module_name _name, sc_core::sc_object _container, sc_core::sc_object _reg_memory)

	generic_lua_model (sc_core::sc_module_name _name, gs::reg_router<> _reg_router, gs::gs_memory<> _reg_memory)

Public Attributes
tlm_initiator_socket_t	initiator_socket

tlm_target_socket_t	target_socket

sc_core::sc_vector< TargetSignalSocket< bool > >	target_signal_sockets

sc_core::sc_vector< InitiatorSignalSocket< bool > >	initiator_signal_sockets

TargetSignalSocket< bool >	reset

Protected Types
enum class	action_source { REGISTER_CB , TARGET_SIGNAL , START_OF_SIM , UNKNOWN }

enum class	actions { PRE_READ , PRE_WRITE , POST_READ , POST_WRITE , UNKNOWN }

using	tlm_initiator_socket_t = tlm_utils::simple_initiator_socket_b< generic_lua_model, DEFAULT_TLM_BUSWIDTH, tlm::tlm_base_protocol_types, sc_core::SC_ZERO_OR_MORE_BOUND >

using	tlm_target_socket_t = tlm_utils::simple_target_socket_b< generic_lua_model, DEFAULT_TLM_BUSWIDTH, tlm::tlm_base_protocol_types, sc_core::SC_ZERO_OR_MORE_BOUND >

using	reg_ptr_t = std::shared_ptr< gs::gs_register< uint32_t > >

using	data_t = std::vector< std::tuple< sc_core::sc_time, uint64_t, uint32_t > >

using	signals_t = std::vector< std::tuple< sc_core::sc_time, uint32_t, bool > >

using	reactions_t = std::pair< data_t, signals_t >

Protected Member Functions
	SCP_LOGGER ()

void	set_base_address ()

void	b_transport (tlm::tlm_generic_payload &trans, sc_core::sc_time &delay)

unsigned int	transport_dbg (tlm::tlm_generic_payload &trans)

bool	get_direct_mem_ptr (tlm::tlm_generic_payload &trans, tlm::tlm_dmi &dmi_data)

void	invalidate_direct_mem_ptr (sc_dt::uint64 start, sc_dt::uint64 end)

void	before_end_of_elaboration () override

void	start_of_simulation () override

void	dispatch (const std::string &_name)

void	set_data_and_signals_actions_from_cci (const std::string &cci_name, data_t &data, signals_t &signals)

void	set_reg_mask_and_value_actions_from_cci (const std::string &cci_name, register_info_t &regs_info)

void	dispatch_signals_actions (const std::string &cci_name, uint32_t sig_num, bool sig_val)

void	dispatch_registers_cb_actions (const std::string &cci_name, const std::string &reg_name, uint64_t address, uint32_t reg_mask, bool is_default_value_set, uint32_t default_value, actions action)

void	bind_register (register_info_t &regs_info)

void	register_input_signal (uint32_t sig_num, bool value, const data_t &data, const signals_t &signals)

void	reg_action_cb (tlm::tlm_generic_payload &txn, sc_core::sc_time &delay, const register_info_t &regs_info)

void	target_signal_cb (int id, bool value)

void	trigger_signals (const signals_t &signals, action_source act_src)

void	write_data (const data_t &data, action_source act_src)

void	exec_data_thread (action_source act_src)

void	exec_sig_thread (action_source act_src)

void	reg_data_thread ()

void	reg_signals_thread ()

void	sos_data_thread ()

void	sos_signals_thread ()

void	target_sig_data_thread ()

void	target_sig_signals_thread ()

template<class T >
void	cci_set (std::string n, T value)

Constructor & Destructor Documentation

◆ generic_lua_model()

gs::generic_lua_model::generic_lua_model	(	sc_core::sc_module_name	_name,
		sc_core::sc_object *	_container,
		sc_core::sc_object *	_reg_memory
	)

This constructor signature is used when a container object is already instanciated and has a sub module called reg_router.

Member Function Documentation

◆ b_transport()

void gs::generic_lua_model::b_transport	(	tlm::tlm_generic_payload &	trans,
		sc_core::sc_time &	delay
	)

protected

Forward b_transport

◆ dispatch()

void gs::generic_lua_model::dispatch ( const std::string & _name )

protected

This will handle the start of simulation after_ns entries, i.e. {after_ns = 100, address = 0x123456, data = 0x789abc}

◆ get_direct_mem_ptr()

bool gs::generic_lua_model::get_direct_mem_ptr	(	tlm::tlm_generic_payload &	trans,
		tlm::tlm_dmi &	dmi_data
	)

protected

DMI is not allowed

◆ invalidate_direct_mem_ptr()

void gs::generic_lua_model::invalidate_direct_mem_ptr	(	sc_dt::uint64	start,
		sc_dt::uint64	end
	)

protected

DMI is not allowed

◆ set_reg_mask_and_value_actions_from_cci()

void gs::generic_lua_model::set_reg_mask_and_value_actions_from_cci	(	const std::string &	cci_name,
		register_info_t &	regs_info
	)

protected

implemented as a separate function, not part of set_data_and_signals_actions_from_cci(), as it should only be used in the register callbacks trigger case.

◆ target_signal_cb()

void gs::generic_lua_model::target_signal_cb	(	int	id,
		bool	value
	)

protected

No need to use else clause here, as the target signal may be configured to trigger an action only for true value but false was written, or vice versa.

◆ transport_dbg()

unsigned int gs::generic_lua_model::transport_dbg ( tlm::tlm_generic_payload & trans )

protected

Forward transport_dbg

The documentation for this class was generated from the following files:

systemc-components/generic_lua_model/include/generic_lua_model.h
systemc-components/generic_lua_model/src/generic_lua_model.cc
