arm_smmu Class Reference

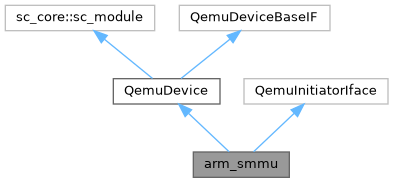

Inheritance diagram for arm_smmu:

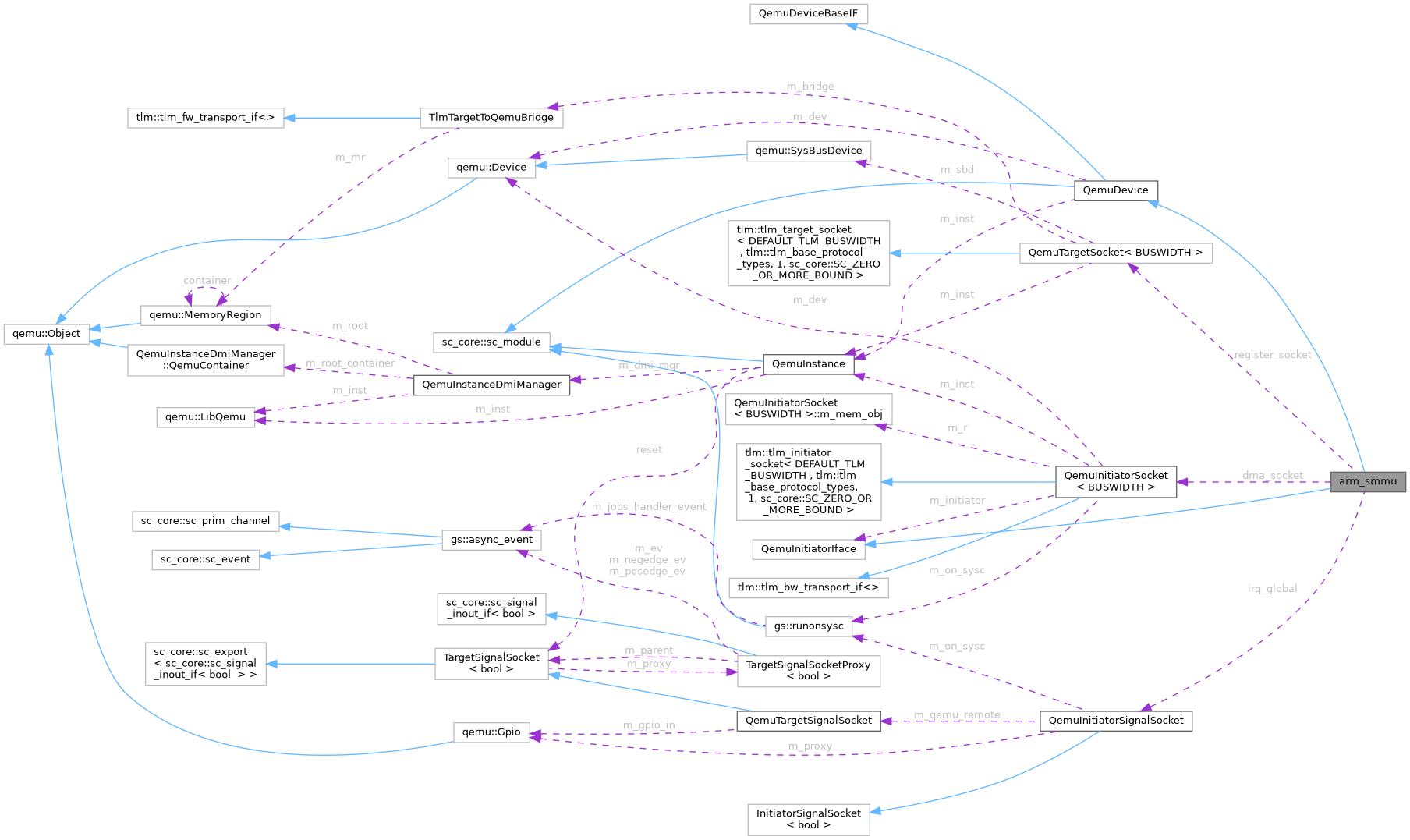

Collaboration diagram for arm_smmu:

Public Member Functions
	arm_smmu (const sc_core::sc_module_name &name, sc_core::sc_object *o)
	arm_smmu (sc_core::sc_module_name nm, QemuInstance &inst)
void	before_end_of_elaboration () override
void	end_of_elaboration () override
virtual void	initiator_customize_tlm_payload (TlmPayload &payload) override
virtual void	initiator_tidy_tlm_payload (TlmPayload &payload) override
virtual sc_core::sc_time	initiator_get_local_time () override
virtual void	initiator_set_local_time (const sc_core::sc_time &t) override
virtual void	initiator_async_run (qemu::Cpu::AsyncJobFn job) override
Public Member Functions inherited from QemuDevice
void	instantiate ()
void	realize ()
	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type)
	Construct a QEMU device.
	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type, const char *id)
	Construct a QEMU device.
void	set_qom_type (std::string const &qom_type)
const char *	get_qom_type () const
const char *	get_id () const
void	set_id (const std::string &nm)
qemu::Device	get_qemu_dev ()
QemuInstance &	get_qemu_inst ()
void	set_sysbus_as_parent_bus (void)
Public Member Functions inherited from QemuDeviceBaseIF
virtual bool	can_run ()
	SCP_LOGGER ()

Public Attributes
cci::cci_param< uint32_t >	p_pamax
cci::cci_param< uint16_t >	p_num_smr
cci::cci_param< uint16_t >	p_num_cb
cci::cci_param< uint16_t >	p_num_pages
cci::cci_param< bool >	p_ato
cci::cci_param< uint8_t >	p_version
cci::cci_param< uint8_t >	p_num_tbu
QemuTargetSocket	register_socket
sc_core::sc_vector< QemuTargetSocket<> >	upstream_socket
sc_core::sc_vector< QemuInitiatorSignalSocket >	irq_context
QemuInitiatorSignalSocket	irq_global
sc_core::sc_vector< QemuInitiatorSocket<> >	downstream_socket
QemuInitiatorSocket	dma_socket

Additional Inherited Members
Public Types inherited from QemuInitiatorIface
using	TlmPayload = tlm::tlm_generic_payload
Protected Attributes inherited from QemuDevice
QemuInstance &	m_inst
qemu::Device	m_dev
bool	m_instanciated = false
bool	m_realized = false

Member Function Documentation

before_end_of_elaboration()

void arm_smmu::before_end_of_elaboration ( )

inlineoverridevirtual

Reimplemented from QemuDevice.

end_of_elaboration()

void arm_smmu::end_of_elaboration ( )

inlineoverridevirtual

Reimplemented from QemuDevice.

initiator_async_run()

virtual void arm_smmu::initiator_async_run ( qemu::Cpu::AsyncJobFn  job )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_customize_tlm_payload()

virtual void arm_smmu::initiator_customize_tlm_payload ( TlmPayload &  payload )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_get_local_time()

virtual sc_core::sc_time arm_smmu::initiator_get_local_time ( )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_set_local_time()

virtual void arm_smmu::initiator_set_local_time ( const sc_core::sc_time &  t )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_tidy_tlm_payload()

virtual void arm_smmu::initiator_tidy_tlm_payload ( TlmPayload &  payload )

inlineoverridevirtual

Implements QemuInitiatorIface.

---

The documentation for this class was generated from the following file:

• qemu-components/arm_smmu/include/arm-smmu.h
