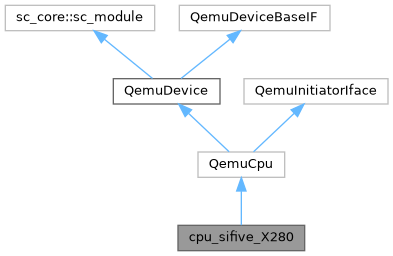

Inheritance diagram for cpu_sifive_X280:

[legend]

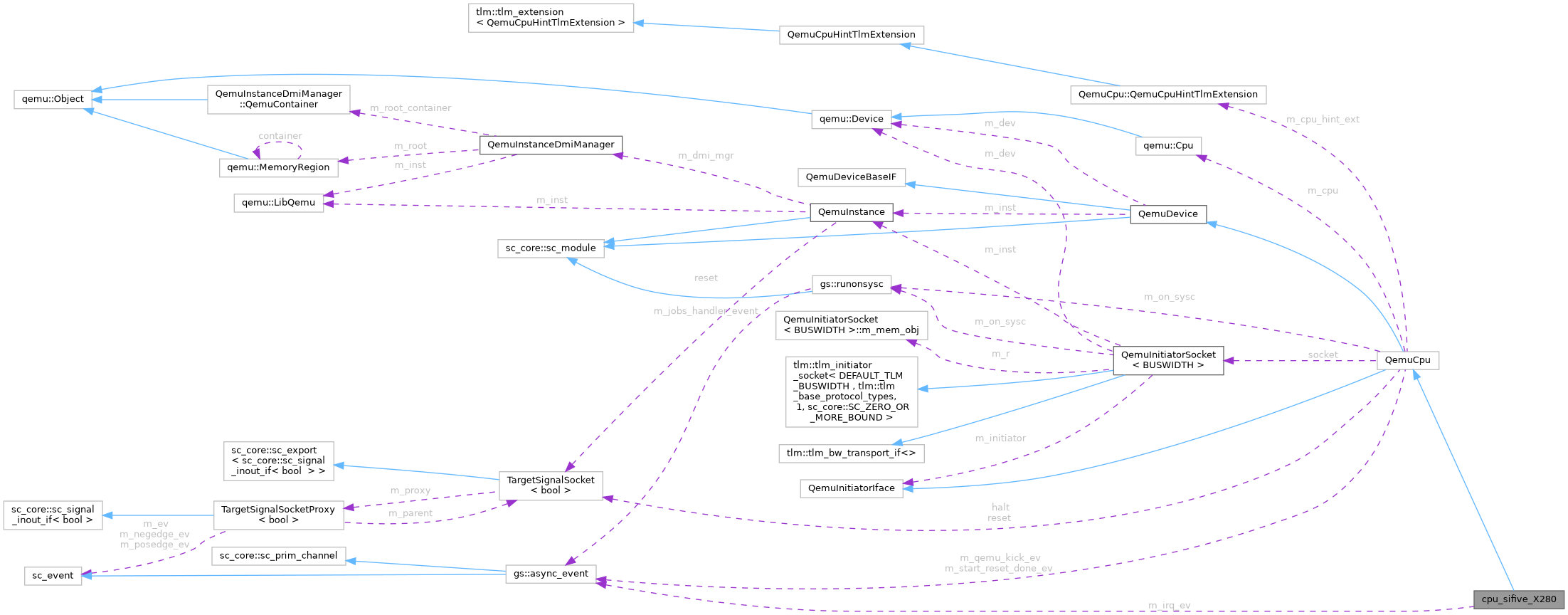

Collaboration diagram for cpu_sifive_X280:

[legend]

Public Member Functions
	cpu_sifive_X280 (const sc_core::sc_module_name &name, sc_core::sc_object *o, std::string model, uint64_t hartid)

	cpu_sifive_X280 (const sc_core::sc_module_name &name, QemuInstance &inst, std::string model, uint64_t hartid)

void	before_end_of_elaboration ()

Public Member Functions inherited from QemuCpu
	QemuCpu (const sc_core::sc_module_name &name, QemuInstance &inst, const std::string &type_name)

void	end_of_simulation () override

bool	can_run () override

void	before_end_of_elaboration () override

void	halt_cb (const bool &val)

void	reset_cb (const bool &val)

virtual void	end_of_elaboration () override

virtual void	start_of_simulation () override

virtual void	initiator_customize_tlm_payload (TlmPayload &payload) override

virtual void	initiator_tidy_tlm_payload (TlmPayload &payload) override

virtual sc_core::sc_time	initiator_get_local_time () override

virtual void	initiator_set_local_time (const sc_core::sc_time &t) override

virtual void	initiator_async_run (qemu::Cpu::AsyncJobFn job) override

Public Member Functions inherited from QemuDevice
void	instantiate ()

void	realize ()

	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type)
	Construct a QEMU device.

void	set_qom_type (std::string const &qom_type)

const char *	get_qom_type () const

qemu::Device	get_qemu_dev ()

QemuInstance &	get_qemu_inst ()

void	set_sysbus_as_parent_bus (void)

Public Member Functions inherited from QemuDeviceBaseIF
	SCP_LOGGER ()

Protected Member Functions
void	mip_update_cb (uint32_t value)

Protected Member Functions inherited from QemuCpu
void	create_quantum_keeper ()

void	set_coroutine_mode ()

void	set_signaled ()

void	watch_external_ev ()

void	kick_cb ()

void	deadline_timer_cb ()

void	wait_for_work ()

void	rearm_deadline_timer ()

void	prepare_run_cpu ()

void	run_cpu_loop ()

void	sync_with_kernel ()

void	end_of_loop_cb ()

void	mainloop_thread_coroutine ()

Protected Attributes
uint64_t	m_hartid

gs::async_event	m_irq_ev

Protected Attributes inherited from QemuCpu
gs::runonsysc	m_on_sysc

std::shared_ptr< qemu::Timer >	m_deadline_timer

bool	m_coroutines

qemu::Cpu	m_cpu

gs::async_event	m_qemu_kick_ev

sc_core::sc_event_or_list	m_external_ev

sc_core::sc_process_handle	m_sc_thread

std::atomic< bool >	m_signaled

std::mutex	m_signaled_lock

std::condition_variable	m_signaled_cond

std::shared_ptr< gs::tlm_quantumkeeper_extended >	m_qk

std::atomic< bool >	m_finished = false

std::atomic< bool >	m_started = false

enum QemuCpu:: { ... }	m_resetting = none

gs::async_event	m_start_reset_done_ev

std::mutex	m_can_delete

QemuCpuHintTlmExtension	m_cpu_hint_ext

uint64_t	m_quantum_ns

Protected Attributes inherited from QemuDevice
QemuInstance &	m_inst

qemu::Device	m_dev

bool	m_instanciated = false

bool	m_realized = false

Additional Inherited Members
Public Types inherited from QemuInitiatorIface
using	TlmPayload = tlm::tlm_generic_payload

Public Attributes inherited from QemuCpu
cci::cci_param< unsigned int >	p_gdb_port

QemuInitiatorSocket	socket

TargetSignalSocket< bool >	halt

TargetSignalSocket< bool >	reset

Protected Types inherited from QemuCpu
enum	{ none , start_reset , hold_reset , finish_reset }

Member Function Documentation

◆ before_end_of_elaboration()

void cpu_sifive_X280::before_end_of_elaboration ( )

inlinevirtual

Reimplemented from QemuDevice.

The documentation for this class was generated from the following file:
