qemu_gpex Class Reference

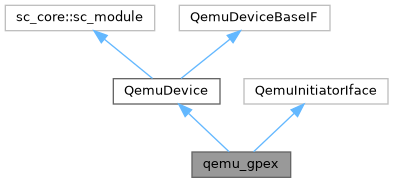

Inheritance diagram for qemu_gpex:

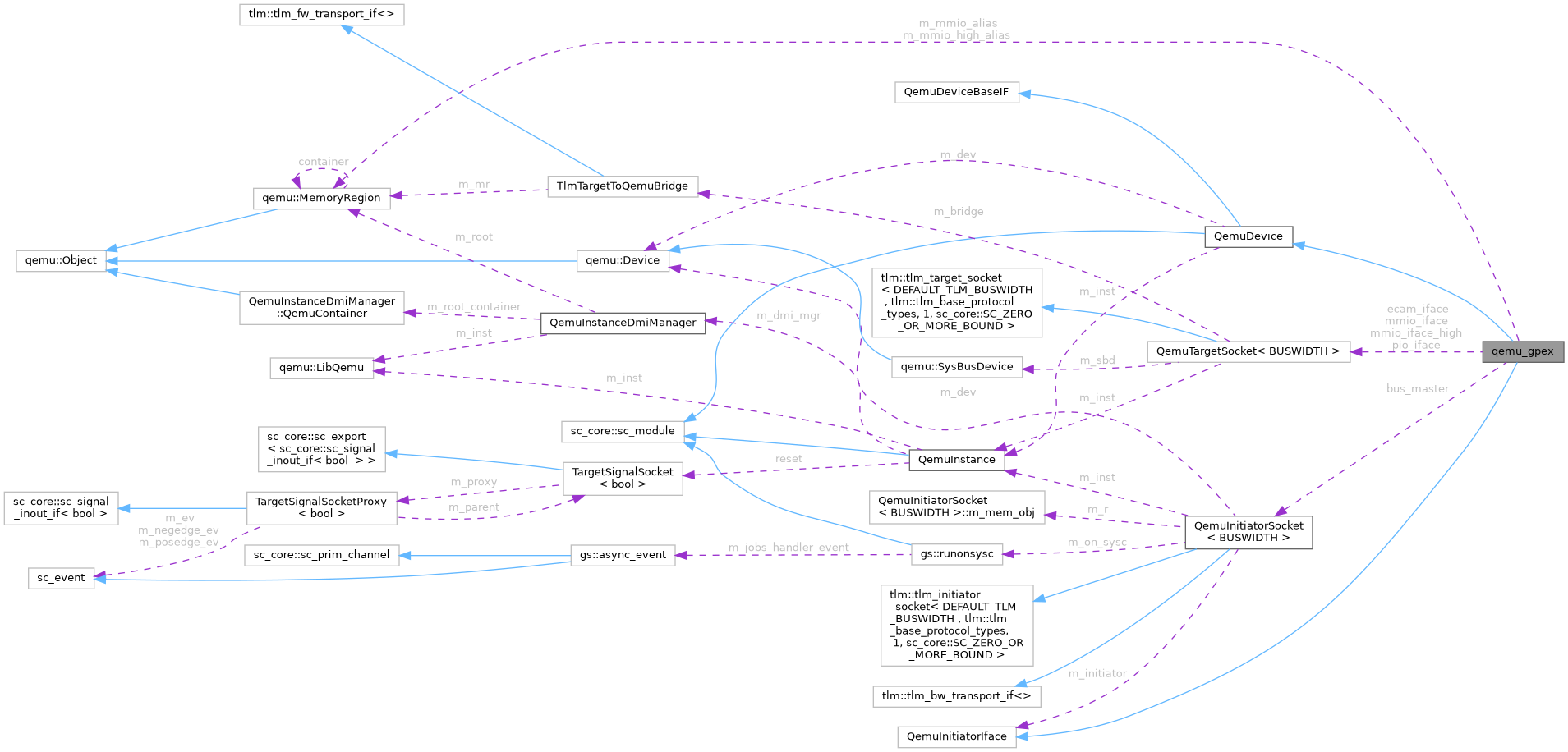

Collaboration diagram for qemu_gpex:

Classes
class	Device

Public Member Functions
	qemu_gpex (const sc_core::sc_module_name &name, sc_core::sc_object *o)
	qemu_gpex (const sc_core::sc_module_name &name, QemuInstance &inst, uint64_t mmio_addr=0x00, uint64_t mmio_size=0x00, uint64_t mmio_high_addr=0x00, uint64_t mmio_high_size=0x00)
void	add_device (Device &dev)
void	before_end_of_elaboration () override
void	end_of_elaboration () override
virtual sc_core::sc_time	initiator_get_local_time () override
virtual void	initiator_set_local_time (const sc_core::sc_time &t) override
virtual void	initiator_customize_tlm_payload (TlmPayload &payload) override
virtual void	initiator_tidy_tlm_payload (TlmPayload &payload) override
virtual void	initiator_async_run (qemu::Cpu::AsyncJobFn job) override
Public Member Functions inherited from QemuDevice
void	instantiate ()
void	realize ()
	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type)
	Construct a QEMU device.
	QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type, const char *id)
	Construct a QEMU device.
void	set_qom_type (std::string const &qom_type)
const char *	get_qom_type () const
const char *	get_id () const
void	set_id (const std::string &nm)
qemu::Device	get_qemu_dev ()
QemuInstance &	get_qemu_inst ()
void	set_sysbus_as_parent_bus (void)
Public Member Functions inherited from QemuDeviceBaseIF
virtual bool	can_run ()
	SCP_LOGGER ()

Public Attributes
QemuInitiatorSocket	bus_master
QemuTargetSocket	ecam_iface
QemuTargetSocket	mmio_iface
QemuTargetSocket	mmio_iface_high
QemuTargetSocket	pio_iface
sc_core::sc_vector< QemuInitiatorSignalSocket >	irq_out
int	irq_num [4]

Protected Attributes
cci::cci_param< uint64_t >	p_mmio_addr
cci::cci_param< uint64_t >	p_mmio_size
cci::cci_param< uint64_t >	p_mmio_high_addr
cci::cci_param< uint64_t >	p_mmio_high_size
qemu::MemoryRegion	m_mmio_alias
qemu::MemoryRegion	m_mmio_high_alias
std::vector< Device * >	devices
Protected Attributes inherited from QemuDevice
QemuInstance &	m_inst
qemu::Device	m_dev
bool	m_instanciated = false
bool	m_realized = false

Additional Inherited Members
Public Types inherited from QemuInitiatorIface
using	TlmPayload = tlm::tlm_generic_payload

Member Function Documentation

before_end_of_elaboration()

void qemu_gpex::before_end_of_elaboration ( )

inlineoverridevirtual

Reimplemented from QemuDevice.

end_of_elaboration()

void qemu_gpex::end_of_elaboration ( )

inlineoverridevirtual

Reimplemented from QemuDevice.

initiator_async_run()

virtual void qemu_gpex::initiator_async_run ( qemu::Cpu::AsyncJobFn  job )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_customize_tlm_payload()

virtual void qemu_gpex::initiator_customize_tlm_payload ( TlmPayload &  payload )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_get_local_time()

virtual sc_core::sc_time qemu_gpex::initiator_get_local_time ( )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_set_local_time()

virtual void qemu_gpex::initiator_set_local_time ( const sc_core::sc_time &  t )

inlineoverridevirtual

Implements QemuInitiatorIface.

initiator_tidy_tlm_payload()

virtual void qemu_gpex::initiator_tidy_tlm_payload ( TlmPayload &  payload )

inlineoverridevirtual

Implements QemuInitiatorIface.

---

The documentation for this class was generated from the following file:

• qemu-components/pci/qemu_gpex/include/qemu_gpex.h
