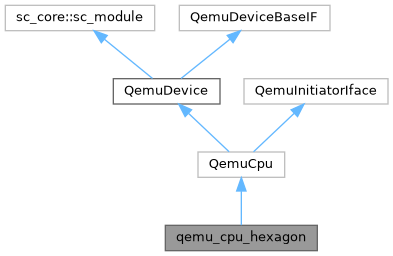

Inheritance diagram for qemu_cpu_hexagon:

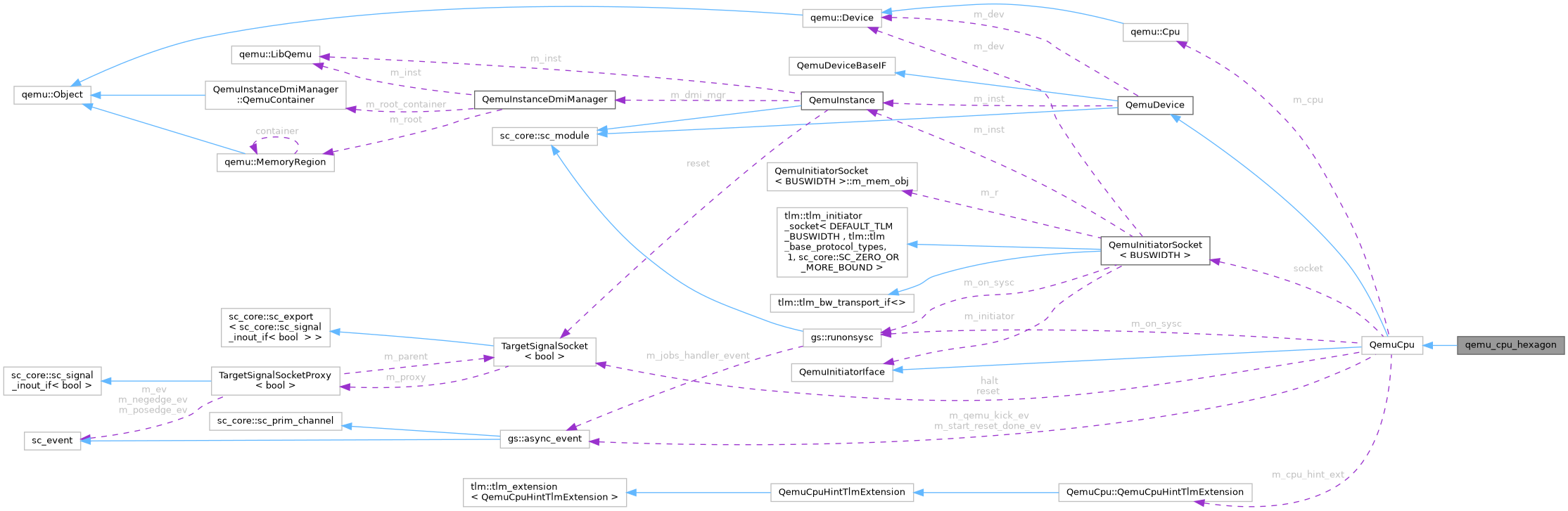

Collaboration diagram for qemu_cpu_hexagon:
Public Types | |
| enum | Rev_t { v66_rev = 0xa666 , v68_rev = 0x8d68 , v69_rev = 0x8c69 , v73_rev = 0x8c73 , v79_rev = 0x8c79 , v81_rev = 0x8781 } |
 Public Types inherited from QemuInitiatorIface | |
| using | TlmPayload = tlm::tlm_generic_payload |
Public Member Functions | |
| qemu_cpu_hexagon (const sc_core::sc_module_name &name, sc_core::sc_object *o) | |
| qemu_cpu_hexagon (const sc_core::sc_module_name &name, QemuInstance &inst) | |
| void | before_end_of_elaboration () override |
| qemu::CpuHexagon | get_cpu_hexagon () const |
| void | end_of_elaboration () override |
| Public Member Functions inherited from QemuCpu | |
| QemuCpu (const sc_core::sc_module_name &name, QemuInstance &inst, const std::string &type_name) | |
| void | end_of_simulation () override |
| bool | can_run () override |
| void | before_end_of_elaboration () override |
| void | halt_cb (const bool &val) |
| void | reset_cb (const bool &val) |
| virtual void | start_of_simulation () override |
| virtual void | initiator_customize_tlm_payload (TlmPayload &payload) override |
| virtual void | initiator_tidy_tlm_payload (TlmPayload &payload) override |
| virtual sc_core::sc_time | initiator_get_local_time () override |
| virtual void | initiator_set_local_time (const sc_core::sc_time &t) override |
| virtual void | initiator_async_run (qemu::Cpu::AsyncJobFn job) override |
| Public Member Functions inherited from QemuDevice | |
| void | instantiate () |
| void | realize () |
| QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type) | |
| Construct a QEMU device. | |
| QemuDevice (const sc_core::sc_module_name &name, QemuInstance &inst, const char *qom_type, const char *id) | |
| Construct a QEMU device. | |
| void | set_qom_type (std::string const &qom_type) |
| const char * | get_qom_type () const |
| const char * | get_id () const |
| qemu::Device | get_qemu_dev () |
| QemuInstance & | get_qemu_inst () |
| void | set_sysbus_as_parent_bus (void) |
| Public Member Functions inherited from QemuDeviceBaseIF | |
| SCP_LOGGER () | |
Public Attributes | |
| const std::map< std::string, Rev_t > | DSP_REVS |
| sc_core::sc_vector< QemuTargetSignalSocket > | irq_in |
| cci::cci_param< uint64_t > | p_cfgbase |
| cci::cci_param< uint32_t > | p_l2vic_base_addr |
| cci::cci_param< uint32_t > | p_qtimer_base_addr |
| cci::cci_param< uint32_t > | p_exec_start_addr |
| cci::cci_param< bool > | p_vp_mode |
| cci::cci_param< bool > | p_semihosting |
| cci::cci_param< bool > | p_start_powered_off |
| cci::cci_param< bool > | p_sched_limit |
| cci::cci_param< bool > | p_paranoid |
| cci::cci_param< std::string > | p_dsp_arch |
| cci::cci_param< uint32_t > | p_subsystem_id |
| cci::cci_param< uint32_t > | p_hexagon_num_threads |
| cci::cci_param< bool > | p_isdben_trusted |
| cci::cci_param< bool > | p_isdben_secure |
| cci::cci_param< std::string > | p_coproc |
| cci::cci_param< std::string > | p_cmdline |
| cci::cci_param< uint64_t > | p_vtcm_base_addr |
| cci::cci_param< uint32_t > | p_vtcm_size_kb |
| cci::cci_param< uint32_t > | p_num_coproc_instance |
| cci::cci_param< uint32_t > | p_hvx_contexts |
| cci::cci_param< uint32_t > | p_num_tlbs |
| cci::cci_param< uint32_t > | p_num_dma_tlbs |
| Public Attributes inherited from QemuCpu | |
| cci::cci_param< unsigned int > | p_gdb_port |
| QemuInitiatorSocket | socket |
| TargetSignalSocket< bool > | halt |
| TargetSignalSocket< bool > | reset |
Static Public Attributes | |
| static constexpr qemu::Target | ARCH = qemu::Target::HEXAGON |
Additional Inherited Members | |
| Protected Types inherited from QemuCpu | |
| enum | { none , start_reset , hold_reset , finish_reset } |
| Protected Member Functions inherited from QemuCpu | |
| void | create_quantum_keeper () |
| void | set_coroutine_mode () |
| void | set_signaled () |
| void | watch_external_ev () |
| void | kick_cb () |
| void | deadline_timer_cb () |
| void | wait_for_work () |
| void | rearm_deadline_timer () |
| void | prepare_run_cpu () |
| void | run_cpu_loop () |
| void | sync_with_kernel () |
| void | end_of_loop_cb () |
| void | mainloop_thread_coroutine () |
| Protected Attributes inherited from QemuCpu | |
| gs::runonsysc | m_on_sysc |
| std::shared_ptr< qemu::Timer > | m_deadline_timer |
| bool | m_coroutines |
| qemu::Cpu | m_cpu |
| gs::async_event | m_qemu_kick_ev |
| sc_core::sc_event_or_list | m_external_ev |
| sc_core::sc_process_handle | m_sc_thread |
| std::atomic< bool > | m_signaled |
| std::mutex | m_signaled_lock |
| std::condition_variable | m_signaled_cond |
| std::shared_ptr< gs::tlm_quantumkeeper_extended > | m_qk |
| std::atomic< bool > | m_finished = false |
| std::atomic< bool > | m_started = false |
| enum QemuCpu:: { ... } | m_resetting = none |
| gs::async_event | m_start_reset_done_ev |
| std::mutex | m_can_delete |
| QemuCpuHintTlmExtension | m_cpu_hint_ext |
| uint64_t | m_quantum_ns |
| Protected Attributes inherited from QemuDevice | |
| QemuInstance & | m_inst |
| qemu::Device | m_dev |
| bool | m_instanciated = false |
| bool | m_realized = false |
Member Function Documentation
◆ before_end_of_elaboration()
|
inlineoverridevirtual |
Reimplemented from QemuDevice.
◆ end_of_elaboration()
Member Data Documentation
◆ DSP_REVS
| const std::map<std::string, Rev_t> qemu_cpu_hexagon::DSP_REVS |
The documentation for this class was generated from the following file:
- qemu-components/cpu_hexagon/include/hexagon.h
