qaic-util¶

QAic utility (qaic-util) is used to query Cloud AI accelerator card information, including:

Card status
Firmware versions
DRAM information
Neural network status
Device IDs
Check, reserve and release the physical channels
Multi-device partitioning (MDP)
Enable/disable ECC

Query card¶

The command to display information about all cards in the system:

sudo /opt/qti-aic/tools/qaic-util -q

The command to display information about a specific card or cards in the system:

sudo /opt/qti-aic/tools/qaic-util -q -d N
sudo /opt/qti-aic/tools/qaic-util -q -d N1 -d Nx

Where N, N1, Nx is the card’s unique ID (0, 1, 2, and so on).

Example:

sudo /opt/qti-aic/tools/qaic-util -q -d 0

Display card information in the UI¶

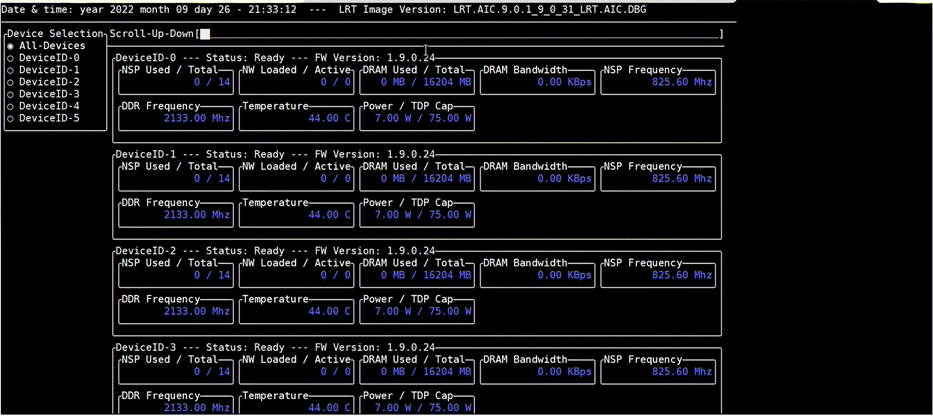

QAic utility (qaic-util) can also display card information in the command line UI.

The user can select all devices or any specific device to monitor using UP/DOWN arrow keys.

If the number of devices are more and cannot fit in a window, the user can scroll up/down using LEFT/RIGHT arrow keys.

The command to launch the UI:

sudo /opt/qti-aic/tools/qaic-util -t S
sudo /opt/qti-aic/tools/qaic-util -t S -d N1 -d Nx

Where S is the refresh rate in seconds and N, N1, Nx is the card’s unique ID (0, 1, 2, and so on).

Example:

sudo /opt/qti-aic/tools/qaic-util -t 2

Check, reserve and release the physical channels¶

Check physical channels:¶

QAic utility (qaic-util) also provides the capability to reserve a physical channel. The user can reserve a physical channel and use it to map the virtual channel during network activation.

The command to check the number of physical channels:

sudo /opt/qti-aic/tools/qaic-util -q -d N | grep -E "QID|Pc"

Example:

sudo /opt/qti-aic/tools/qaic-util -q -d 0 | grep -E "QID|Pc"

QID 0
   Pc Total:7
   Pc Reserved:0

Reserve physical channel:¶

The command to reserve a physical channel:

sudo /opt/qti-aic/tools/qaic-util -c <numPhysicalChannels> -d N

Example:

sudo /opt/qti-aic/tools/qaic-util -c 2 -d 0

QID 0
    Pc Total:7
    Pc Reserved:2

Release physical channel:¶

The command to release a physical channel:

sudo /opt/qti-aic/tools/qaic-util -c <numPhysicalChannels=zero> -d N

Example:

sudo /opt/qti-aic/tools/qaic-util -c 0 -d 0

Multi-device partitioning (MDP)¶

The qaic-util supports the following MDP peer-to-peer (P2P) capabilities.

Enable P2P by disabling ACS.

sudo /opt/qti-aic/tools/qaic-util -a

Check the P2P status.

/opt/qti-aic/tools/qaic-util -r -v

You should see P2P+ and MDP+ for all relevant devices that can run P2P. The devices also need to be connected in a contiguous PCI hierarchy under one PCI switch.

Enable/disable ECC¶

The qaic-util tool supports enabling and disabling ECC.

For example:

sudo /opt/qti-aic/tools/qaic-util -e enable
sudo /opt/qti-aic/tools/qaic-util -e disable

The following table lists qaic-util argument details.

Argument	Description
`-q, --query [-d QID]`	Query command to get device information. If -d is not provided with this option, it queries device information for all devices.
`-d, --aic-device-id <QID\|SBDF>`	AIC device ID. This can represent either (1) the QID or (2) the PCIe SBDF in the form of SSSS:BB:DD.F of an AIC device. Eg. “-d 0” means AIC device of QID 0; “-d 0000:02:01.0” means AIC device of PCIe SBDF 0000:02:01.0. This option can be used multiple times, and can be used fully with query (-q), json (-j), reserve (-c) and table (-t). The -d option can be used with disable-acs(-a) to indicate QID only but not PCIe SBDF.
`-t, --table <refresh-rate-sec> [-d QID]`	Display device information in tabular format. Data is refreshed after every <refresh-rate-sec>. Default is all devices. To select specific devices, use device ID (-d) or filter (-f). Ctrl+C to exit..
`-c, --reserve-pc <numChannels> [-d QID]`	Reserve Physical (DMA) Channels for data transfer. Default is all devices. To select specific devices, use device ID (-d) or filter (-f).
`-j, --json-output-file <output-file-name>`	Dumps output of qaic-util to the json file provided. To select specific devices, use device ID (-d) or filter (-f).
`-f, --filter <"property==value">`	Filter the devices based on property. Supported properties are: Status, MHI_ID, Device Capabilities, and Board serial. Can be used with query (-q), json (-j), reserve (-c) and table (-t) Eg: ./qaic-util -q -f “Board serial==SERIAL_012345”
`-r, --tree-view`	Displays devices basic info in tree format. Use verbose(-v) to see all pcie hierarchy.
`-v, --verbose`	Adds verbosity. Currenlty only supported with –tree-view(-r).
`-s, --soc-reset`	MHI based soc-reset. Default is all devices. To select specific devices, use device PCI or board serial ID (-p).
`-p, --pci-or-board-serial-id <bdf\|bs>`	Unique PCI BDF or board serial ID for the device(s) to reset. This option can be used multiple times and can only be used with reset option (-s).
`-a, --disable-acs`	Disable Access Control Service (ACS) between devices. Default is all qaic devices systemwide. The –aic-device-id(-d) and/or –pci-sbdf-for-disable-acs(-b) options can be used to select among which devices ACS should be disabled. Eg: ‘./qaic-util -a’ Disable ACS systemwide. ‘./qaic-util -a -d 0 -d 5’ Disable ACS between QID 0 and 5. ‘./qaic-util -a -b “0000:02:00.0”’ Disable ACS between all devices under that pci bridge. ‘./qaic-util -a -d 7 -b “0000:a3:00.0”’ Disable ACS among those devices. If ACS disable is not possible because of not being able to find a P2P connection, then QS_UNSUPPORTED(11) is returned.
`-b, --pci-sbdf-for-disable-acs`	The PCIe SBDF of a qaic device or of a PCIe bridge under which qaic device(s) reside. If a bridge is selected, all qaic-devices under it will be considered. Can only be used with –disable-acs(-a) command. Can be used multiple times and can be used with –aic-device-id(-d) option in the QID sense. The -b option differes from the -d option with PCIe SBDF in that the -b option can represent an AIC device as well as a PCIe bridge device, whereas the -d option can only represent an AIC device.
`-e, --ecc <enable\|disable>`	ECC enable or ECC disable.
`-h, --help`	help
